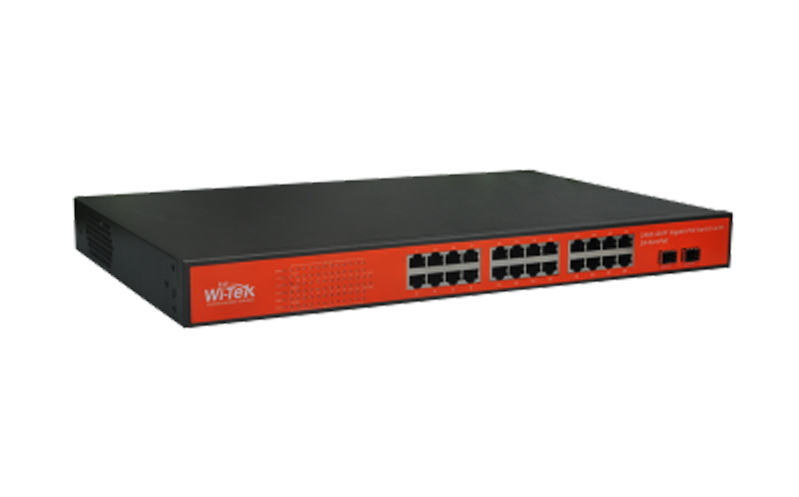

WI-PS326GF

>>>รับประกันการใช้งาน 5 ปี<<<

Specifications

• Datasheet

HARDWARE FEATURES

• Interface 24 1000M POE Ports2SFP Ports
• Network Media 10Base -T:Pair 2 Category 3(Cat3) and aboveUTP/STP(≤100m)100Base-TX: Pair 2 Category 5(Ca t5) and aboveUTP/STP(≤100m)1000Base-T: Pair 4 Category 5(Cat5e) and aboveUTP/STP(≤100m)1000Base-SX:62.5μm/50μm MMF(2m~550m)1000Base-LX:62.5μm/50μm MM(2m~550m) or10μm SMF(2m~5000m)
• Fan Quantity Fanless
• Power Consumption 300W (max. with PoE device connected)
• External Power Supply AC 110~265V 50/60HZ
• PoE Ports (RJ45) Standard: 802.3 af/at compliant PoE Ports: Port1- Port24
• Power Supply: 300W
• Exchange Capacity 52G
• Mac Address Table 8K
• Dimensions Product Size:440mm*290mm*45mm(L*W*H)

SOFTWARE FEATURES

• Transmission Method Store-And-Forward
• Advanced Functions Priority Function Mac Address Auto-Learning And Auto-AgingStore and forwardIEEE 802.3x flow control for Full-duplex Mode Backpressure for Half-duplex Mode

OTHERS

• Certification CE, FCC, RoHS

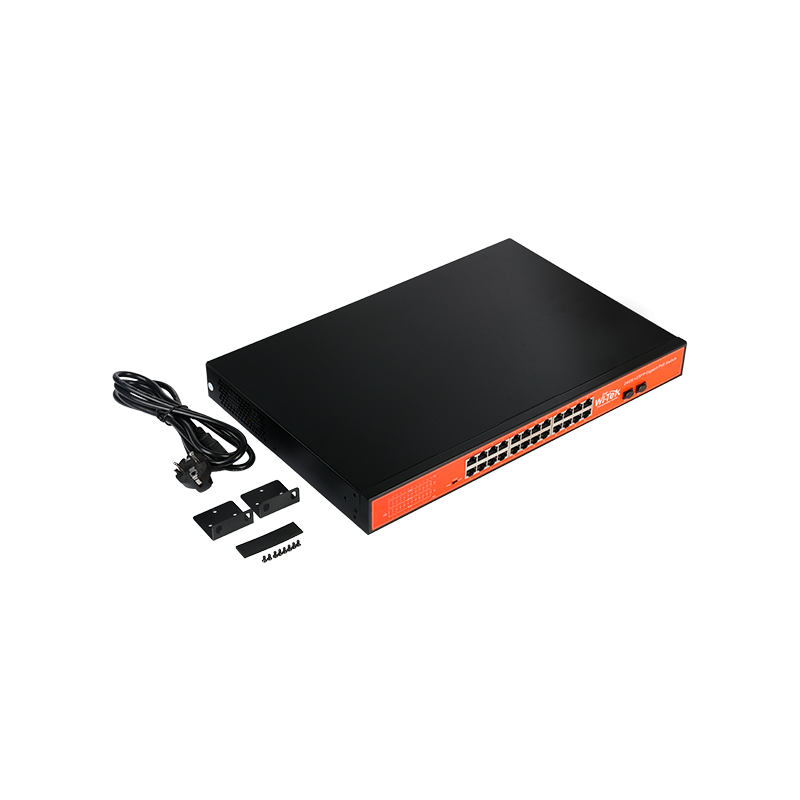

• Package Contents POE Switch Electric Line Guide Book/Warranty Card 2L Shape Mount+4 Shim
• Environment Working Temperature: 0°C~40°C Storage temperature :-40°C~70°C Working Humidity : 10%~90% RH non-condensing Storage Humidity: 5%~90% RH non-condensing
