Product

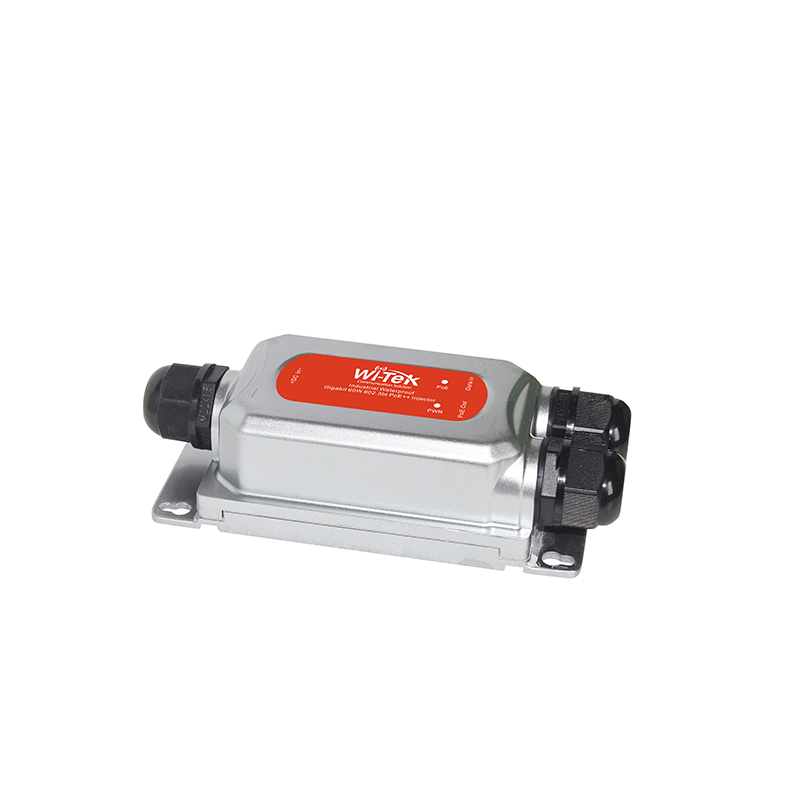

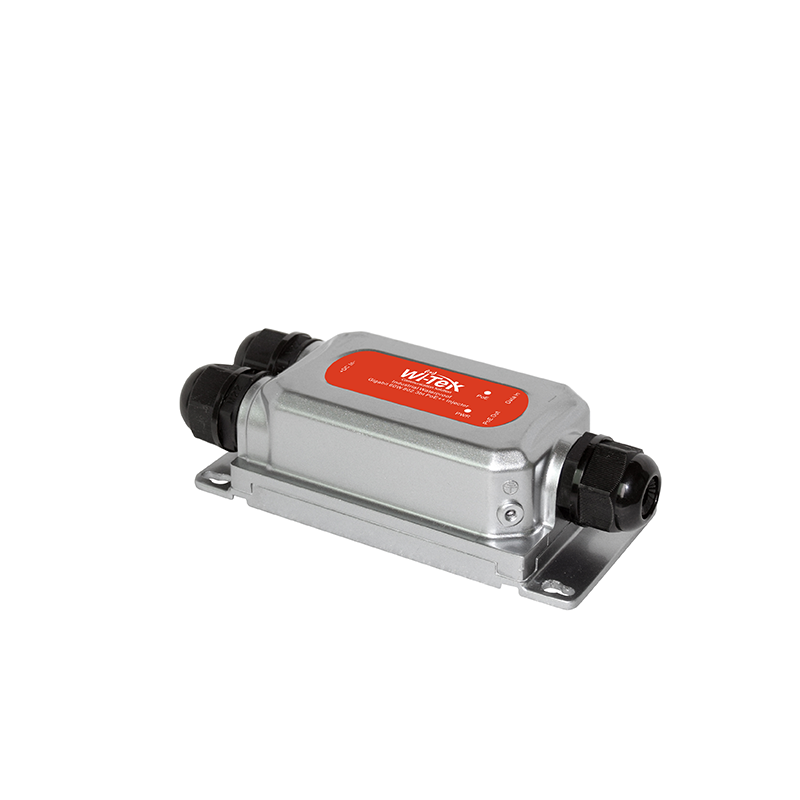

PoE Extender

Interface

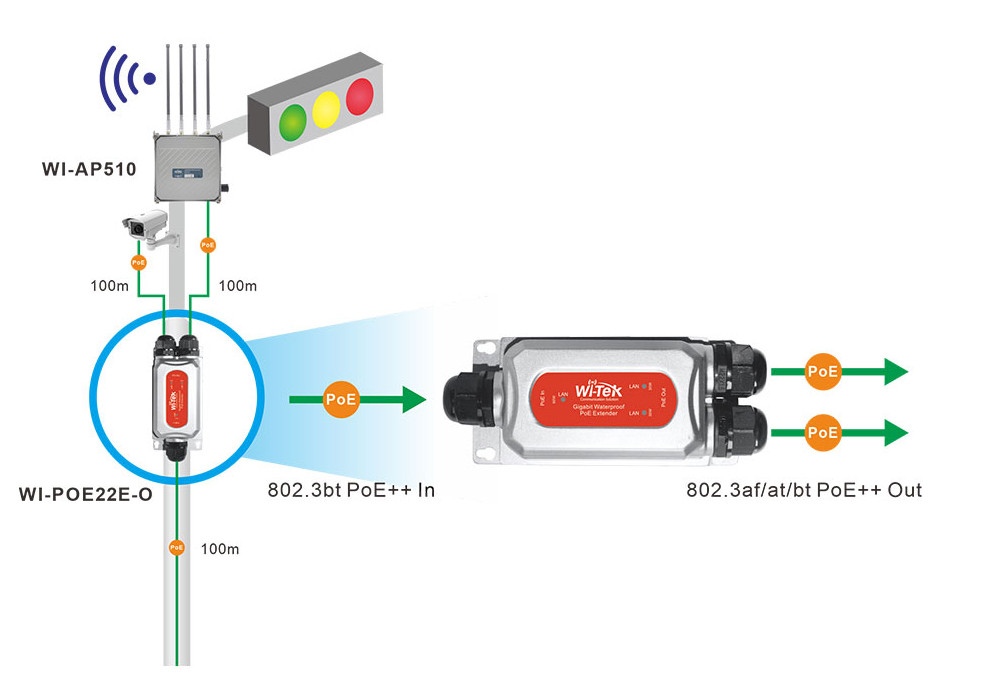

PoE in port：

1 x 1000Mbps PoE port with 802.3bt 60W

PoE output port:

2 x 1000Mbps PoE port  with 802.3af/at 30W

Pin

PoE in: 1/2/4/5(+), 3/6/7/8(-)

PoE output: 1/2(+)3/6(-) or 4//5(+) 7/8(-)

Transmission Method

Store-And-Forward

Advanced Functions

Priority Function Mac Address Auto-Learning And Auto-Aging Store
and forward IEEE 802.3x flow control for Full-duplex Mode
Backpressure for Half-duplex Mode

Waterproof

IP68

LED Indicator

LAN

Certification

CE, FCC, RoHS

Dimensions ( W x D x H )

150*73*44MM

Package Contents

1 x PoE Extender

1 x Waterproof Kit

1 x Installation Guide

Environment

Operating Temperature: -40°C~80°C
