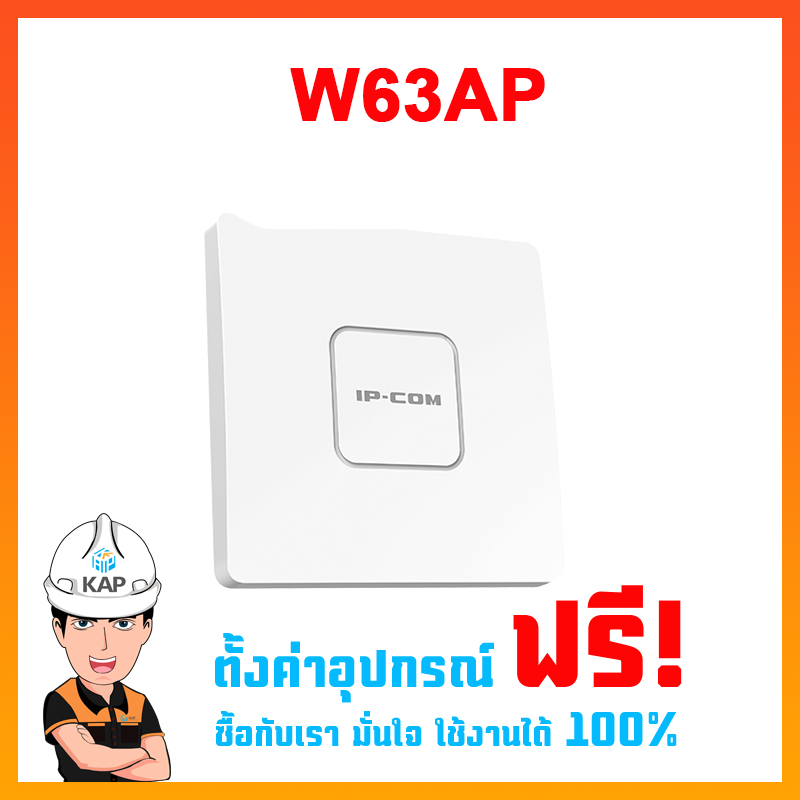

W63AP
Overview
IP-COM W63AP Wireless Access Point Dual-Band 2 ย่านความถี่ 2.4/5GHz มาตรฐาน AC MU-MIMO Wave 2 ความเร็วสูงสุด 1,200Mbps Port Lan ความเร็ว Gigabit รองรับการทำ Access Controller รองรับ POE มาตรฐาน 802.3at
Product Information
Model
Appearance
Ceiling
Dimensions
178 mm * 178 mm * 38 mm
Hardware Features
Frequency band
2.4 GHz, 5 GHz
Wireless standards
IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac
2.4 GHz data rate
1 - 300 Mbps
5 GHz data rate
6 - 867 Mbps
Ethernet port
1*10/100/1000 Base-TX port
Button
1*Reset
LED indicator
1*Power
Max. power consumption
Full-load 13.5W
Power supply standard
IEEE 802.3at (Not Include)
Software Specification
Operating modes
AP, Client + AP
Hide SSID
Supported
Max. No. of SSID
2.4 GHz: 8 5 GHz: 4
Max. connected clients
2.4 GHz: 128 5 GHz: 128
WEP
WPA-PSK
AES/TKIP
WPA2-PSK
WPA
WPA2
Access control
MAC address-based
Adjustable power transmit
Frequency Analysis
AP isolation
Connected clients control
RSSI Threshold
WMM
VLAN tagging for SSID
Antenna gain
4 dBi
2.4 GHz Max output power
23 +/- 1.5 dBm
5 GHz Max output power
23 +/-1.5 dBm
802.11b RX sensitivity
-93 dBm
2.4 GHz 802.11n (MCS7) RX sensitivity
-72 dBm
5 GHz 802.11a RX sensitivity
5 GHz 802.11n (MCS7) RX sensitivity
-74 dBm
LED control
Diagnostics Tool
Ping, Traceroute
Scheduled reboot
Reboot at specified interval
Management
Web UI
System logs
Firmware Upgrade
Local and AC upgrade
Reboot
Local and AC reboot
Reset
Local and AC reset
Backup configuration
Restore configuration
Operating Environment
Default login IP address
192.168.0.254
Default user name
admin
Default password
Operating temperature
-10? - 45?
Operating humidity
(10%-90%) RH, non-condensing
Storage temperature
-30? - 70?
Storage humidity
Packaging
Giftbox
Yes
Wireless ceiling AP
1
Bracket
Plastic nut
4
Plastic anchor
Screw
Quick installation guide
GPL
Certificates
CEFCCRoHS
