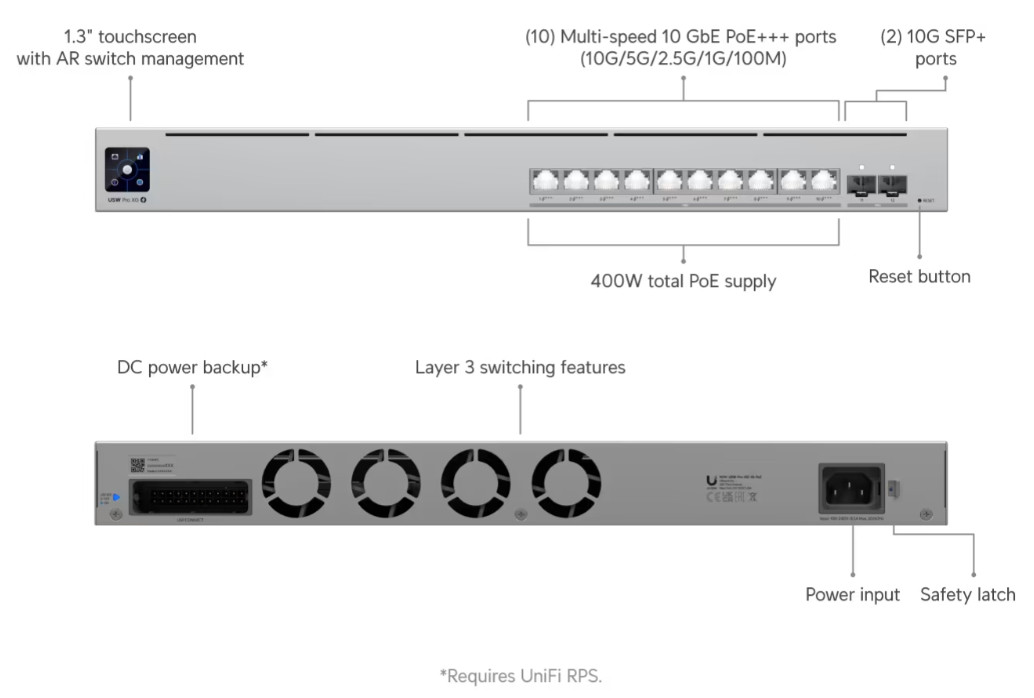

10 GbE RJ45

10G SFP+

Max. PoE Output

Up to PoE+++

Total PoE Availability

400W

Redundancy

DC Power Backup

Layer 3

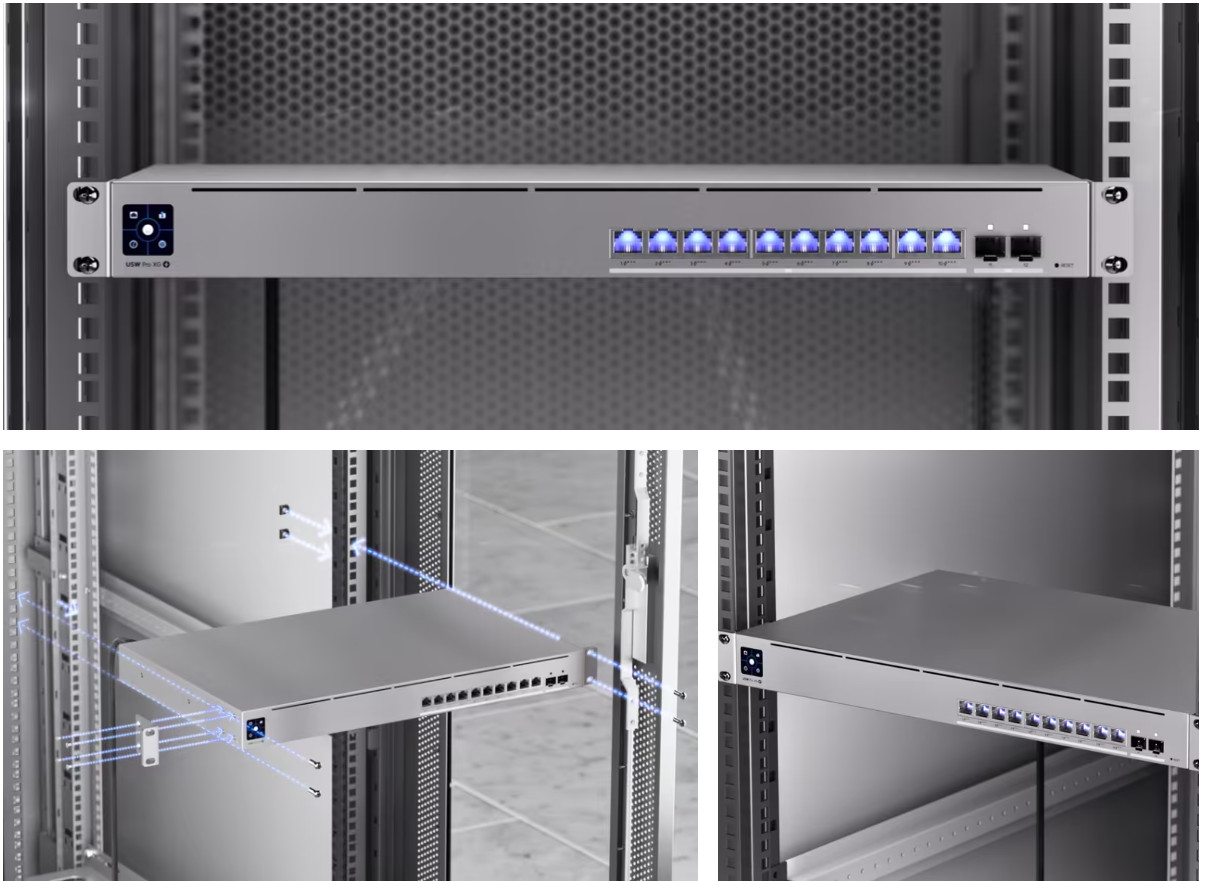

Form Factor

Rack mount (1U)

Switching Capacity

240 Gbps

Total Non-Blocking Throughput

120 Gbps

Forwarding Rate

179 Mpps

Supported VLANs

1,000

MAC Address Table Size

32,000

DHCP Server (Local Networks)

DHCP Relay

Inter-VLAN Routing (Local Networks)

Static Routing (Local Networks)

PoE+++

Max. PoE Wattage per Port by PSE

PoE

15.4W

PoE+

30W

PoE++

PoE+++

Max. Power Consumption

Power Input Method

AC input

Power Supply

AC/DC, internal, 550W

Supported Voltage Range

CE, FCC, IC, Anatel: 05660-25-08356

UniFi Network

Version 9.1.120 and later
