ข้อมูลอุปกรณ์

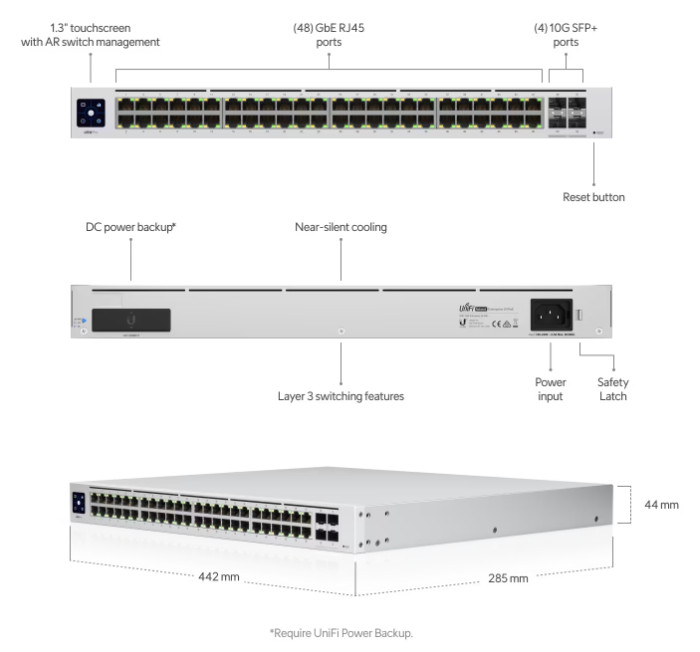

  Dimensions

442.4 x 285.4 x 43.7 mm
(17.42 x 11.24 x 1.72")

  Weight
  With Brackets

4.00 kg (8.82 lb)
4.09 kg (9.02 lb)

  Interfaces
  Networking

  Management

(48) 10/100/1000 RJ45 Ports
(4) 1/10G SFP+ Ethernet Ports
Ethernet In-Band

  Total Non-Blocking Throughput

88 Gbps

  Switching Capacity

176 Gbps

  Forwarding Rate

130.944 Mpps

  Power Method
  Universal Input
  USP RPS DC Input

100-240VAC, 50/60 Hz
11.5VDC, 5.22A

  Power Supply

AC/DC, Internal, 60W

  Voltage Range

100 to 240VAC

  Max Power Consumption

60W

  LEDs
  RJ45 Data Ports
  SFP+ Data Ports

Speed/Link/Activity
Link/Activity

  ESD/EMP Protection

Air: ± 16 kV, Contact: ± 12 kV

  Shock and Vibration

ETSI300-019-1.4 Standard

  Operating Temperature

-5 to 45° C (23 to 113° F)

  Operating Humidity

10 - 90% Noncondensing

  Certifications

CE, FCC, IC
