USW-Lite-8-POE (52W)
✅(8) Gigabit RJ45 ports including (4) 802.3af/at PoE+ ports
✅(1-4) PoE Out GbE
✅ (5-8) LAN GbE ports
✅52W total PoE power adapter
✅Wall-mountable (Kit included)
✅Managed by UniFi Controller (7.2.94 or later)
รหัสสินค้า: USW-Lite-8-PoE
จำนวนสินค้าที่มี : 4
ขนาดสินค้า
น้ำหนัก : 0.45 KG ความยาว : 16.37 CM ความกว้าง : 9.96 CM ความสูง : 3.17 CM
ราคา:
4,489.00 ฿
ประหยัด: 3%
4,359.00 ฿
(ราคายังไม่รวม VAT) ของ_USW-Lite-8-POE (52W)
จำนวน
รายละเอียดสินค้า

USW-Lite-8-PoE

>>>รับประกันการใช้งาน 3 ปี<<<

ข้อมูลอุปกรณ์

Datasheet USW Lite 8 PoE



USW-Lite-8-PoE เป็นสวิตช์ Layer 2 ที่มีการจัดการเต็มรูปแบบพร้อมพอร์ต Gigabit Ethernet แปดพอร์ตสำหรับอุปกรณ์ RJ45 Ethernet ของคุณ พอร์ตสี่พอร์ตยังมี 802.3at PoE ที่ตรวจจับอัตโนมัติซึ่งให้กำลังไฟ PoE รวม 52W สำหรับ UniFi Access Point หรืออุปกรณ์ PoE อื่น ๆ

USW-Lite-8-PoE จัดการและกำหนดค่าโดย UniFi Network Controller พร้อมการสนับสนุนแอพมือถือ UniFi นำเสนอโปรโตคอลและคุณสมบัติการสลับเลเยอร์ 2 UniFi Network Controller และแอพมือถือช่วยให้ผู้ดูแลระบบสามารถกำหนดค่าและตรวจสอบคุณสมบัติสวิตช์เกือบทั้งหมดในอินเทอร์เฟซผู้ใช้แบบกราฟิกได้จากทุกที่

  • (8) Gigabit RJ45 ports including (4) 802.3af/at PoE+ ports

  • Managed by UniFi Controller (5.13.10 or later)

  • External 60W power adapter

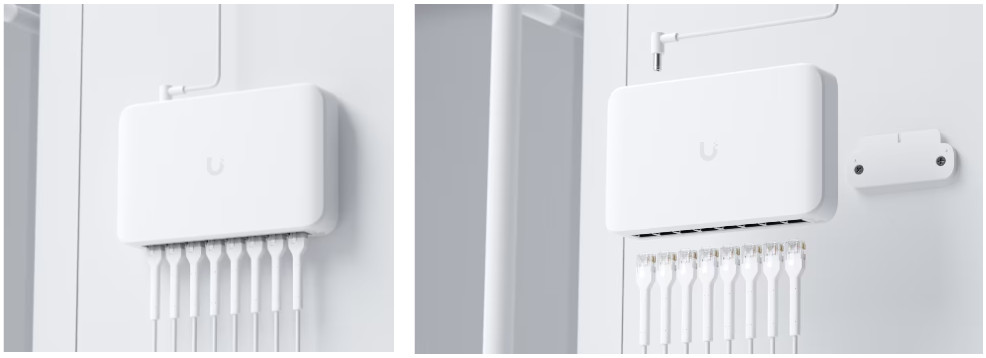

  • Wall-mountable (Kit included)

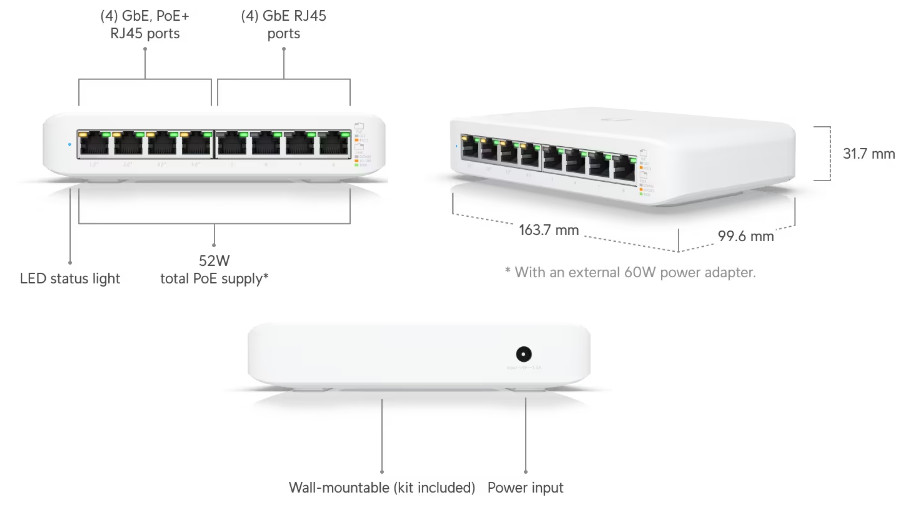

MECHANICAL

Dimensions

99.6 x 163.7 x 31.7 mm (3.92 x 6.44 x 1.25″)

Weight

450 g (15.87 oz)



HARDWARE

Total Non-Blocking Line Rate

8 Gbps

Max. Power Consumption

8W

Power Method

54VDC, 1.1A Power Adapter

Power Supply

External 54V/60W Power Adapter

Supported Voltage Range

DC 50V to 57V

Networking Interfaces

(8) 10/100/1000 Mbps Ethernet RJ45 Ports

PoE Interfaces

(4) PoE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-)

Mangement Interface

Ethernet In-Band

Max. PoE+ Wattage per Port by PSE

30W

Modes

SMB Layer 2 PoE Gigabit Ethernet Switch

Operating Temperature

-15 to 40° C (5 to 104° F)

Operating Humidity

10 – 90% Noncondensing

Certifications

CE, FCC, IC



LEDS

System

(1) Power, Blue/White
Flashing White: Bootup in Progress
Flashing Blue: Firmware Upgrading
Steady White: Factory Defaults, Awaiting Adoption
Steady Blue: Device is Adopted

Ethernet

Green: 1G, Amber: 10/100 Mbps

PoE

Amber: IEEE 802.3af/at
