UNVR-Pro

>>>รับประกันการใช้งาน 1 ปี<<<

Hardware

• Processor: Quad-Core ARM® Cortex®-A57 at 1.7 GHz
• System Memory: 4 GB
• On-Board Flash Storage:32GB
• Max. Power Consumption: 160W
• Max. Power Budget for Drives:135W
• Power Method : (1) Universal AC input, 100-240VAC, 3A Max, 50/60 Hz , (1) USP-RPS DC input, 11.5VDC, 13.91A
• Power Supply: AC/DC, Internal, 200W

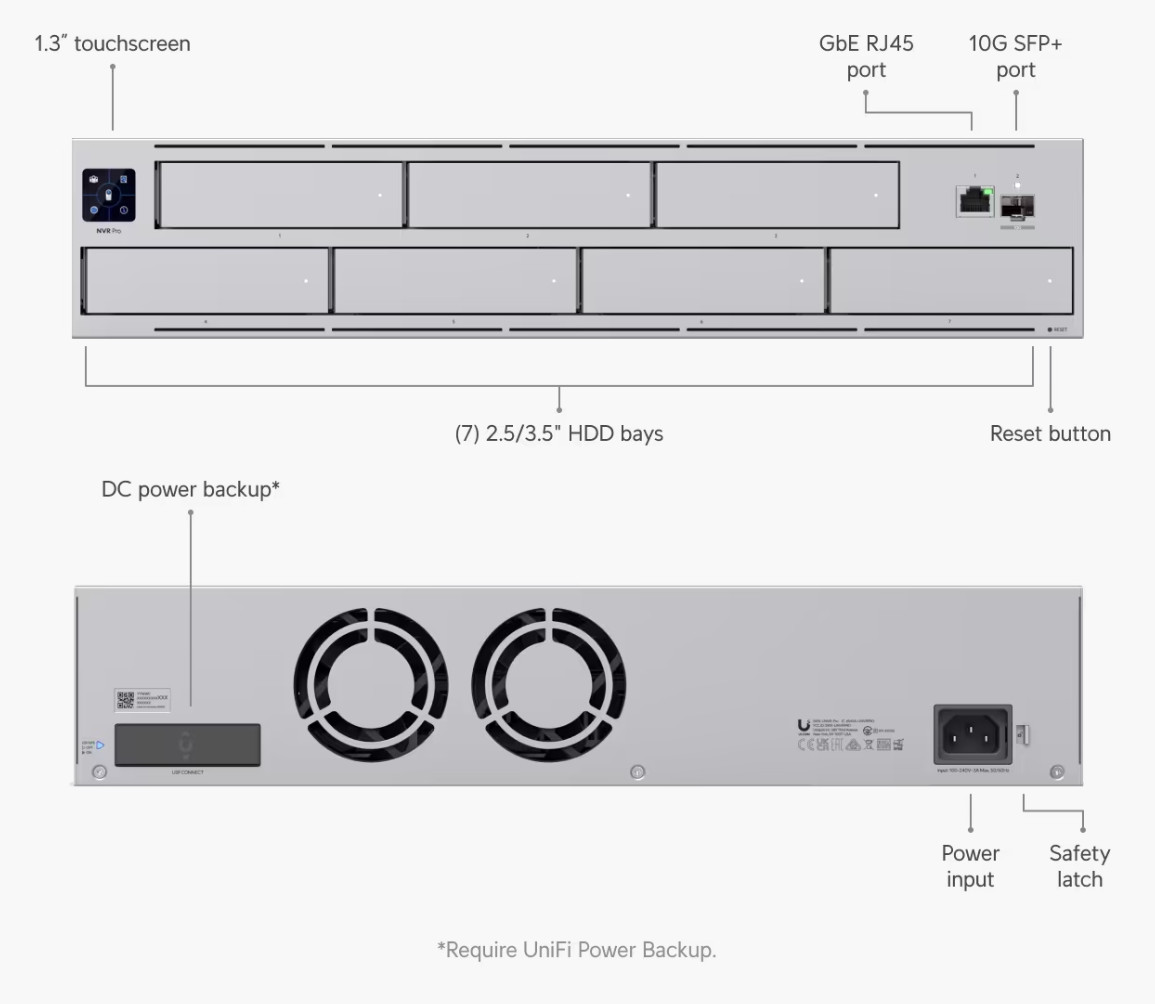

• (7) 2.5"/3.5" HDD bays

Networking Interfaces

• (1) 10/100/1000 Mbps RJ45 Ethernet
• (1) 1/10 Gbps SFP+ Ethernet

Power Supply

• AC/DC, Internal, 200W

RF Interface

• (1) Bluetooth v4.1

LCM Display

• (1) 1.3" Touchscreen
• Bootup Animation: Bootup in Progress
• Firmware Upgrade Icon: Firmware Upgrading
• Steady White: Factory Defaults, Awaiting Adoption
• Steady Blue: Device is Adopted

LEDs

• Ethernet :Green: 1000 Mbps, Amber: 10/100 Mbps
• SFP+ : White: 10 Gbps, Green: 1 Gbps
• HDD: Amber: Disk Error, White: Disk Detected
• RPS:Blue: Ready

Operating Temperature

• -5 to 40° C (23 to 104° F)

ขนาด / น้ำหนัก

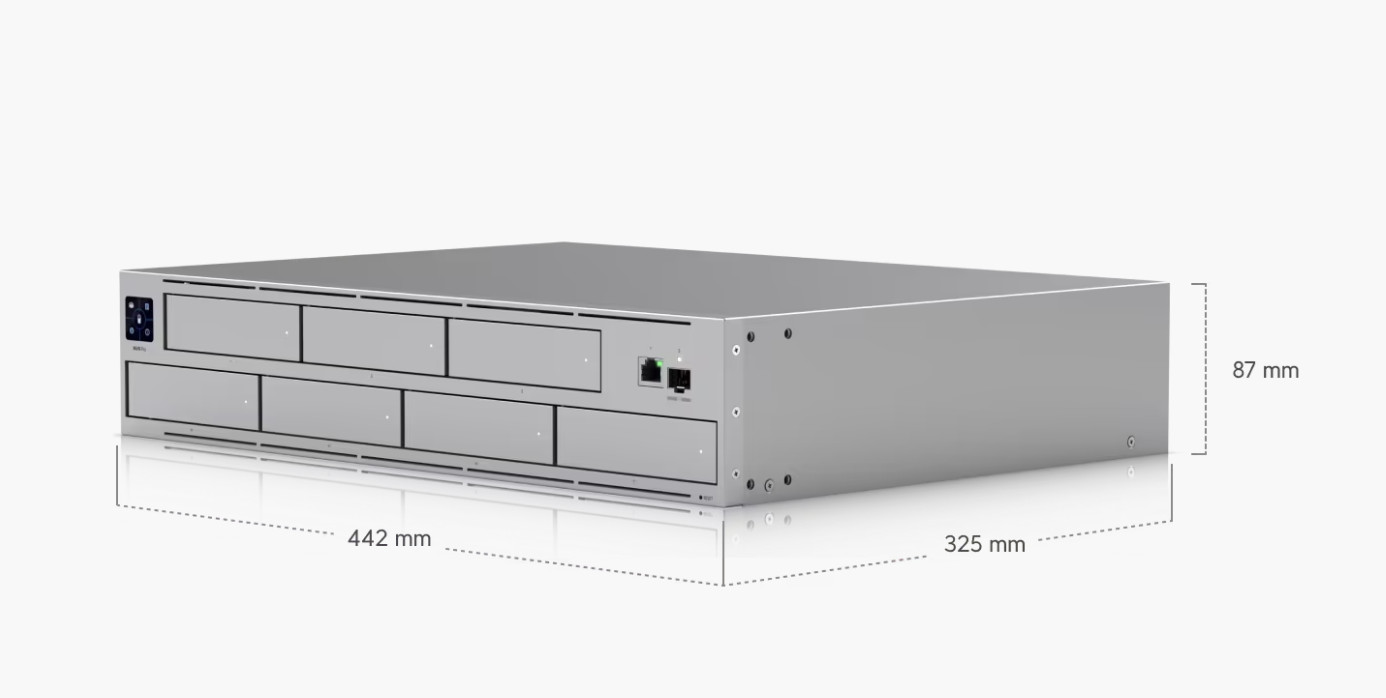

• 442 x 325 x 87 mm (17.4 x 12.8 x 3.4")/ 9.2 kg (20.28 lb)
