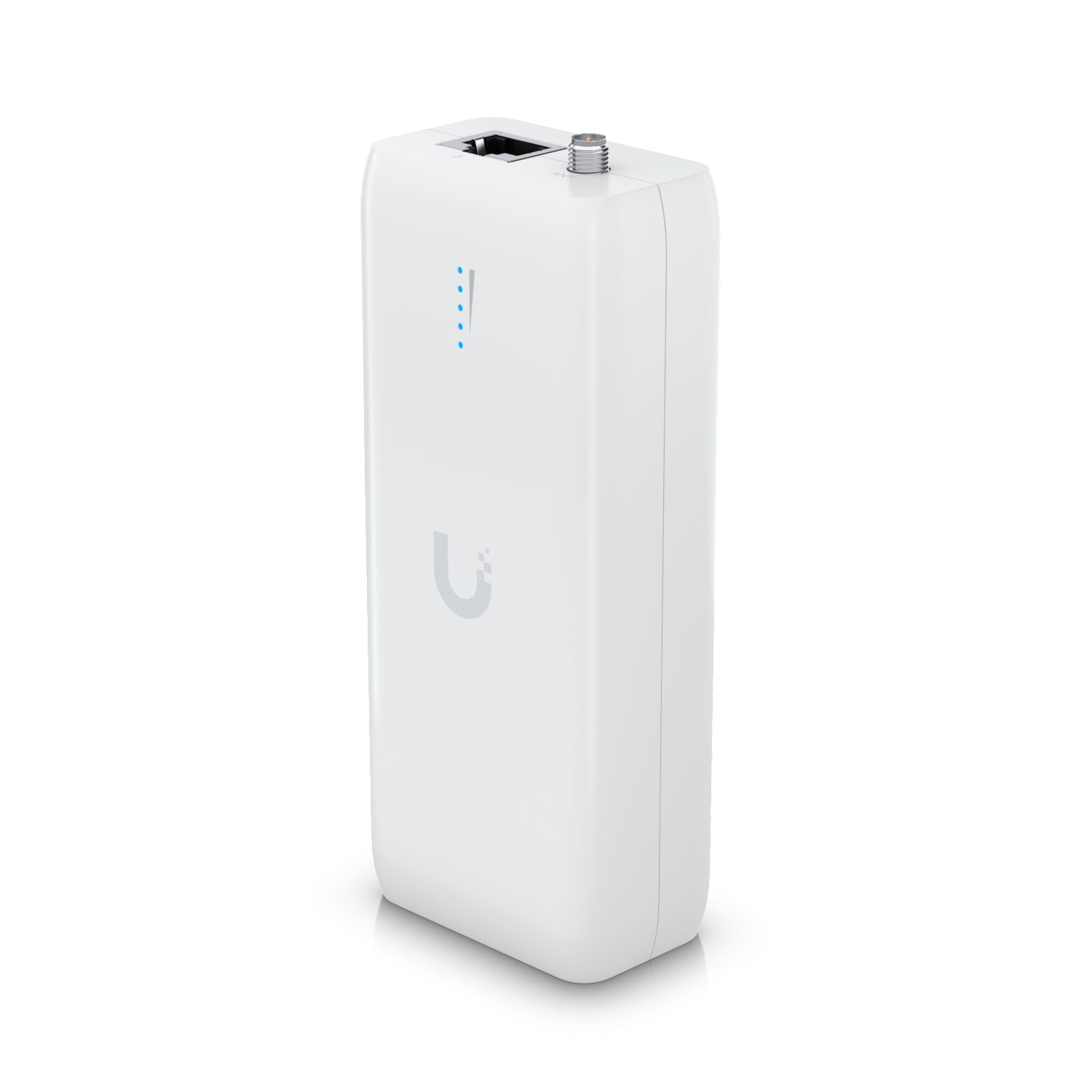

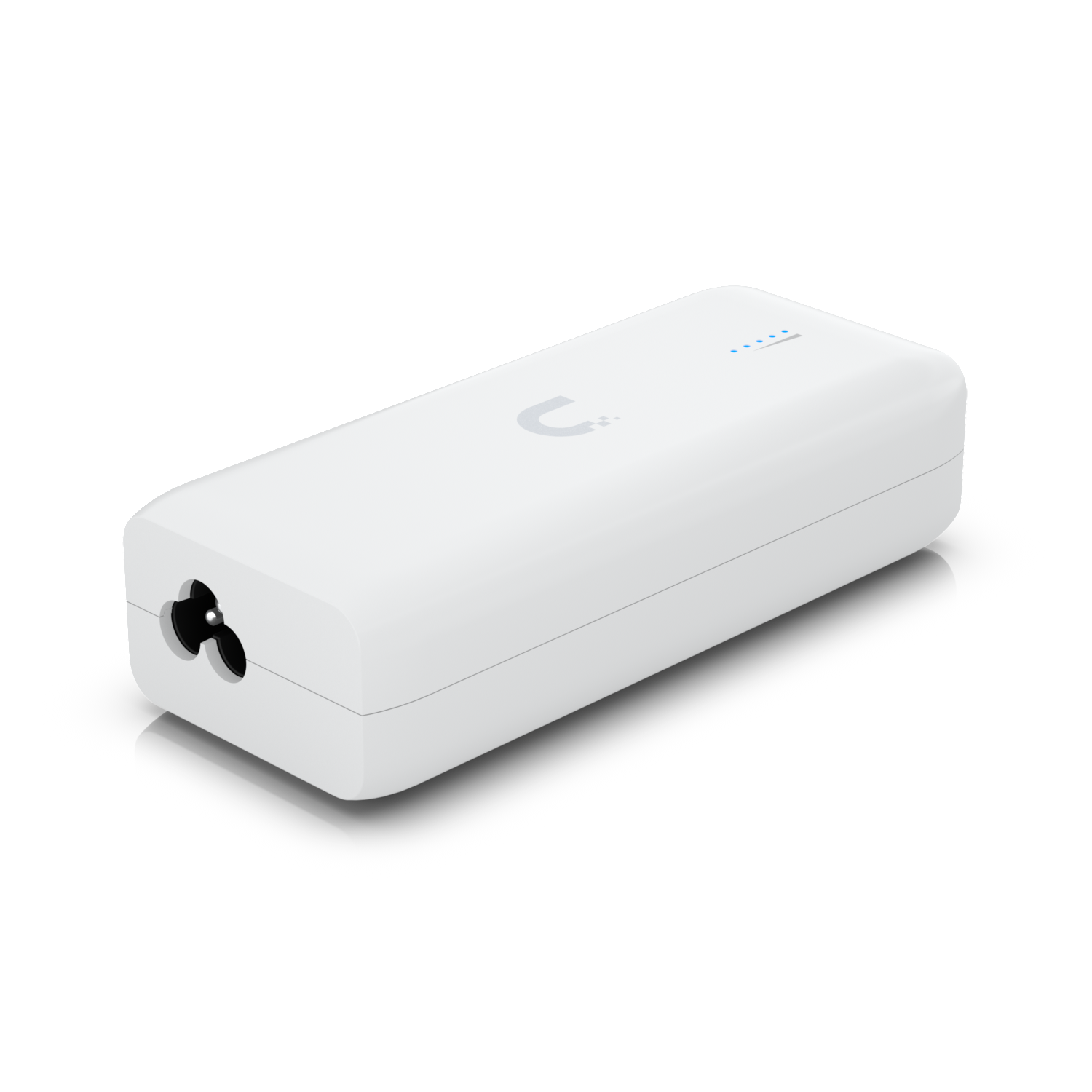

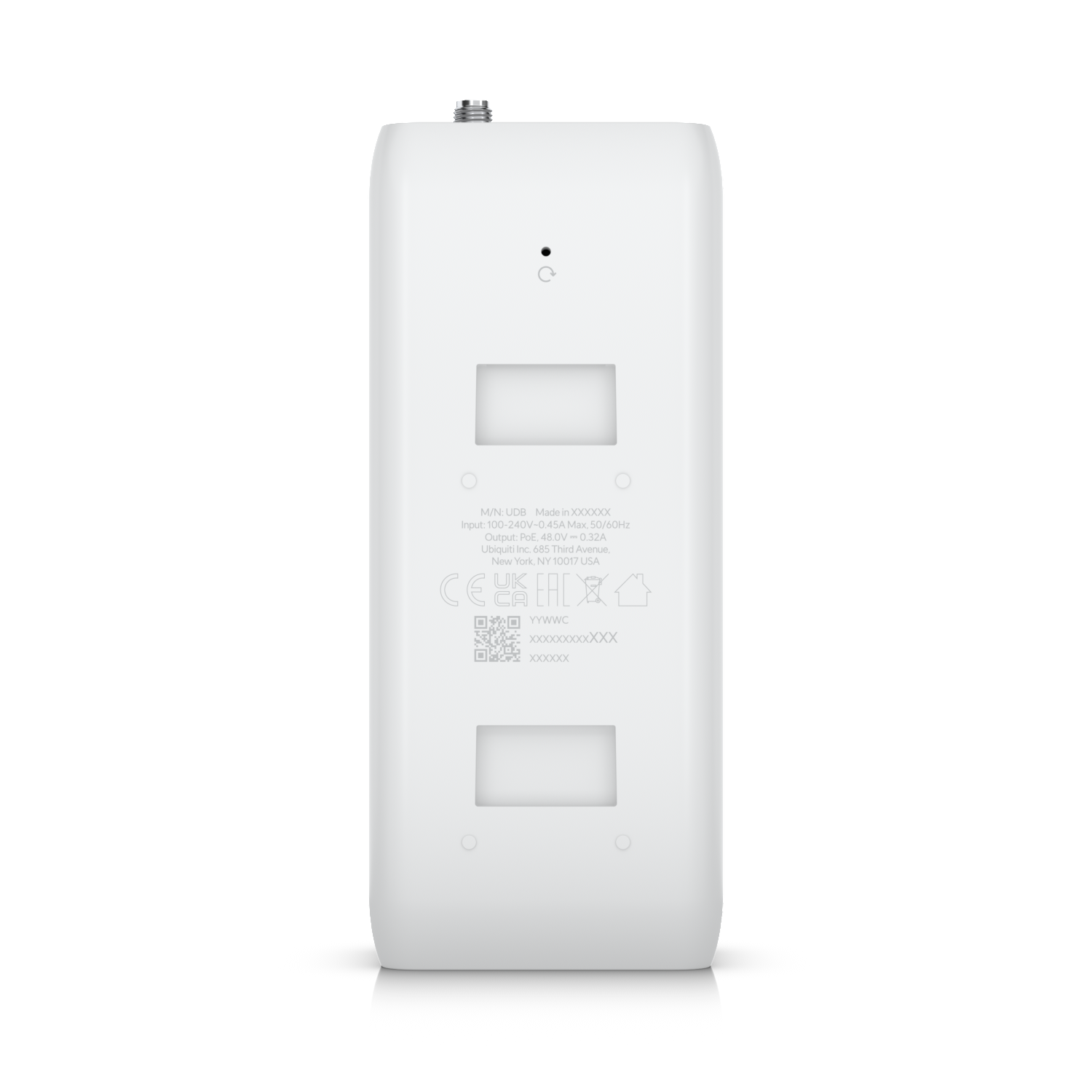

UDB[Device Bridge]
>>>รับประกันการใช้งาน 1 ปี<<

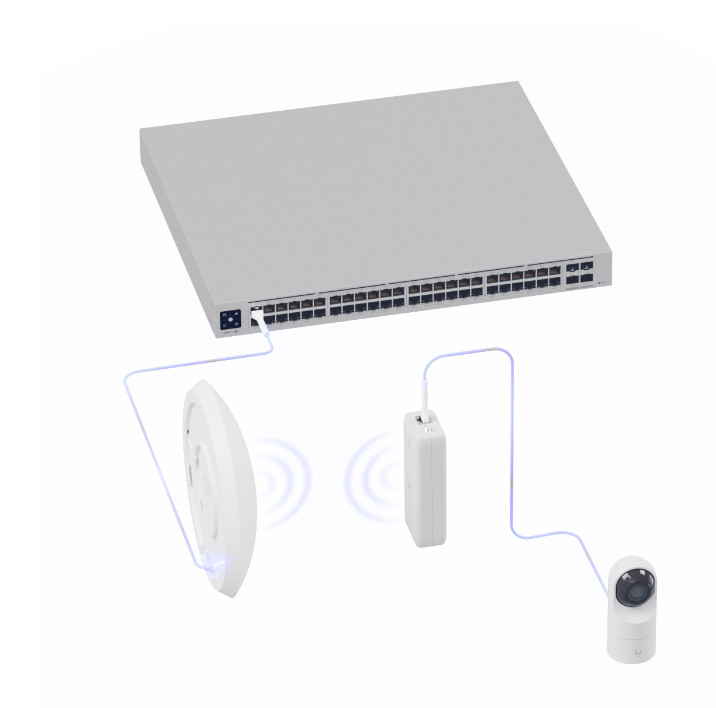

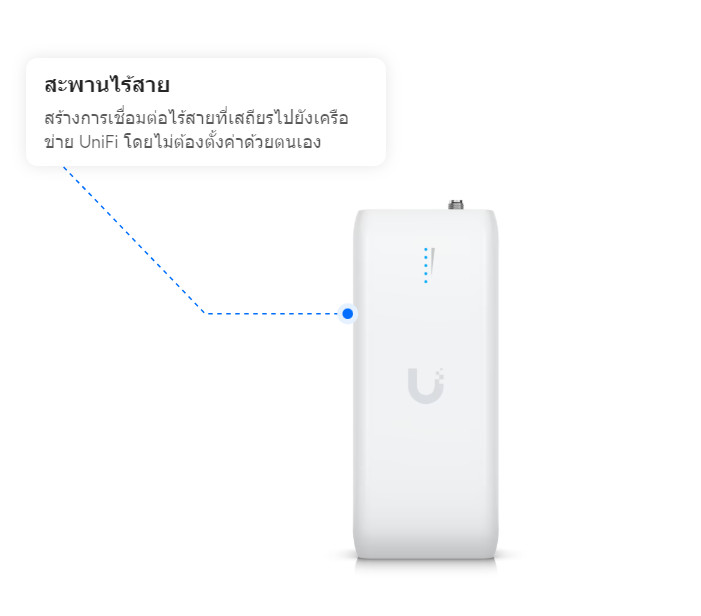

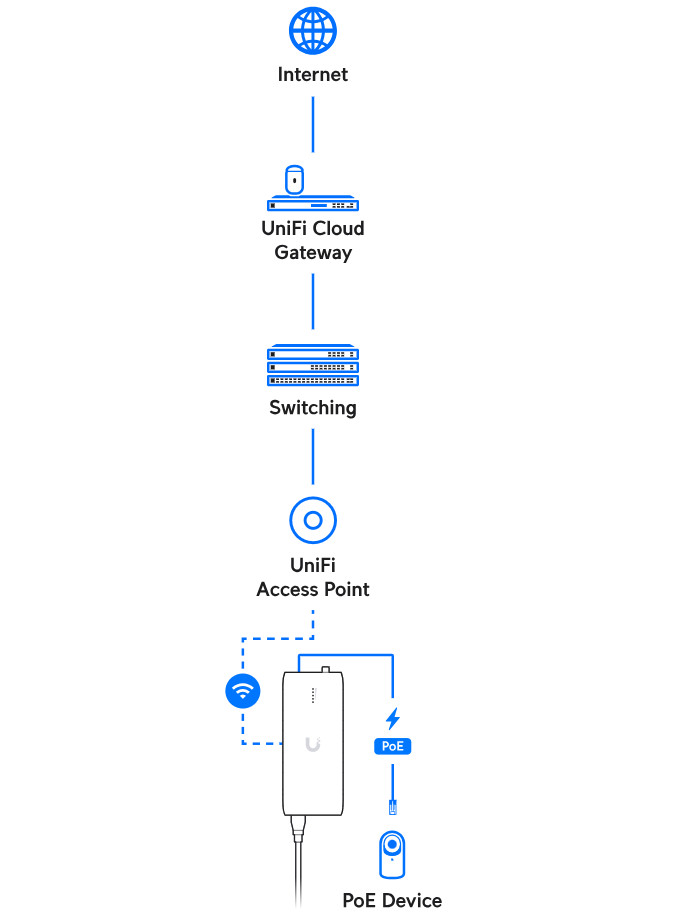

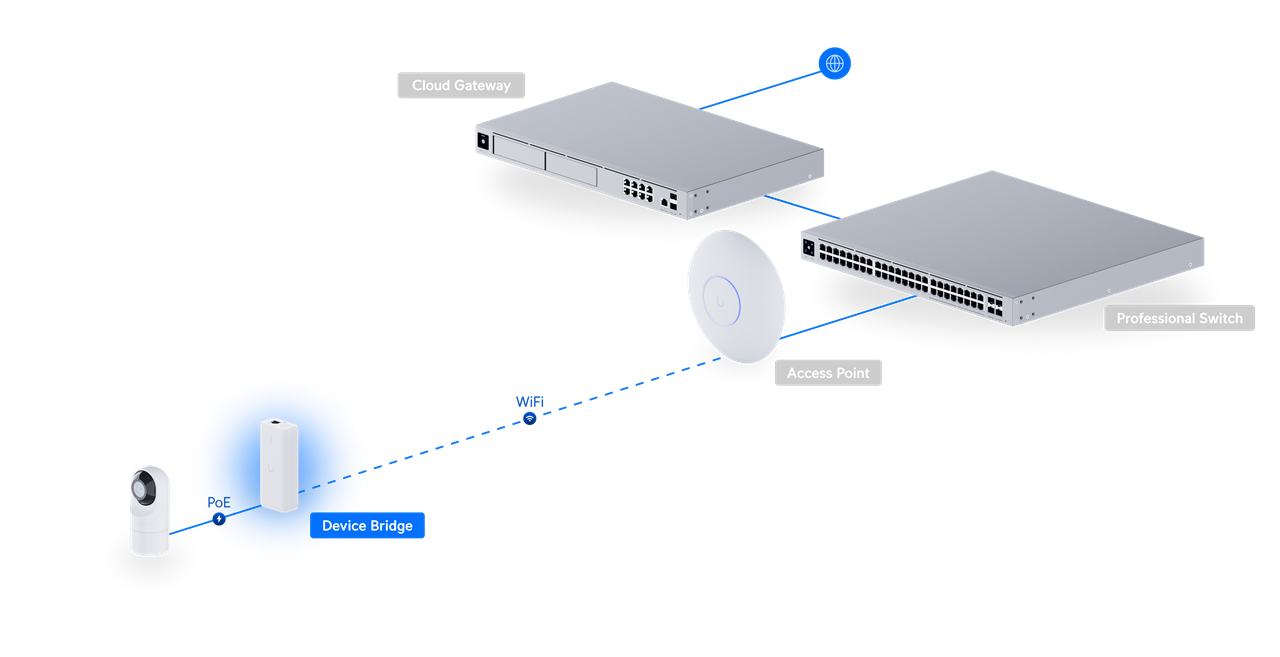

Plug-and-play, wireless bridging PoE adapter with integrated UniFi WiFi Auto-Link.
Device Bridge[UDB] datasheet
Installation Guide

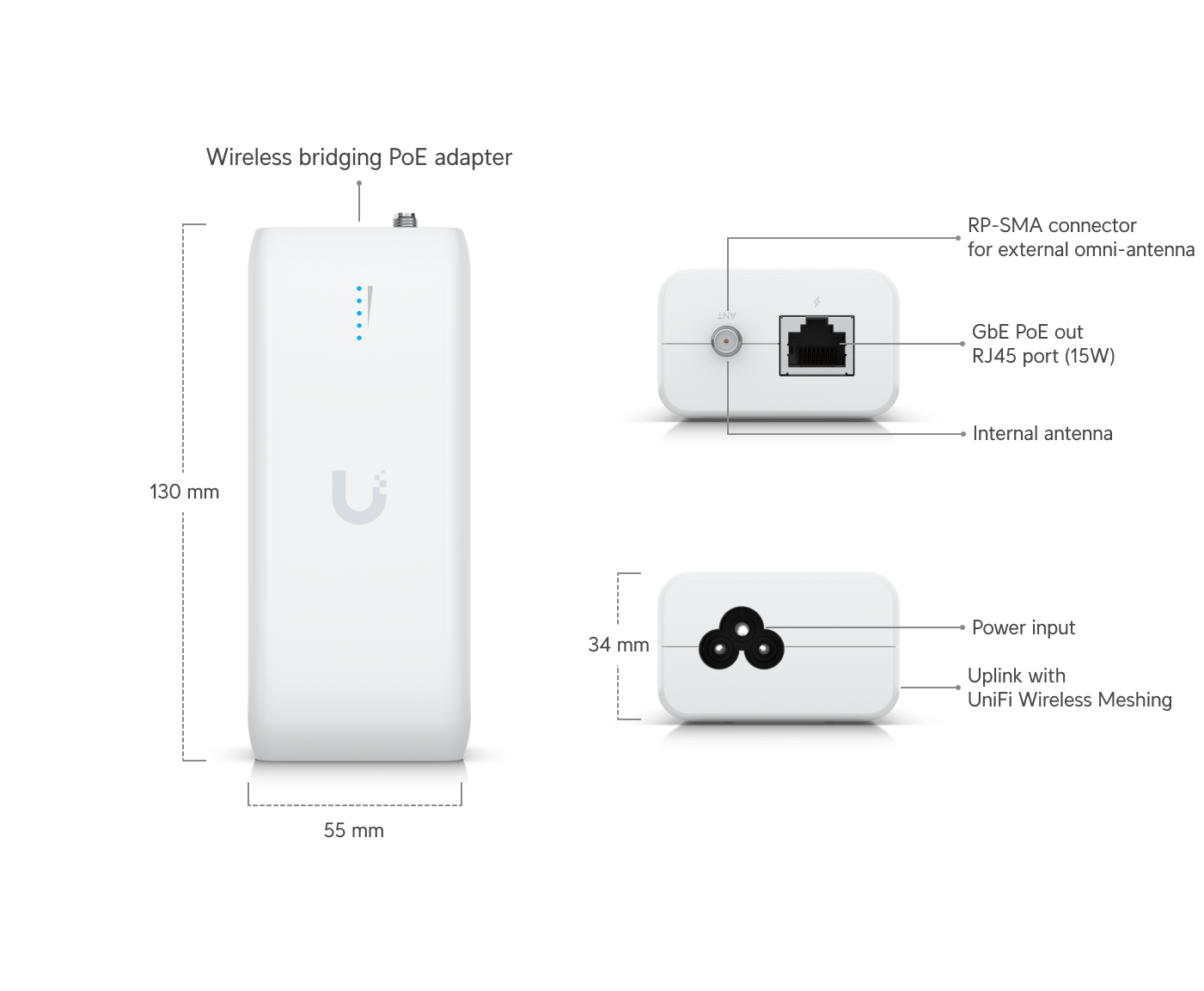

Dimensions
130 x 55 x 34 mm (5.1 x 2.2 x 1.3")
WiFi Standard
WiFi 5
Spatial Streams
2

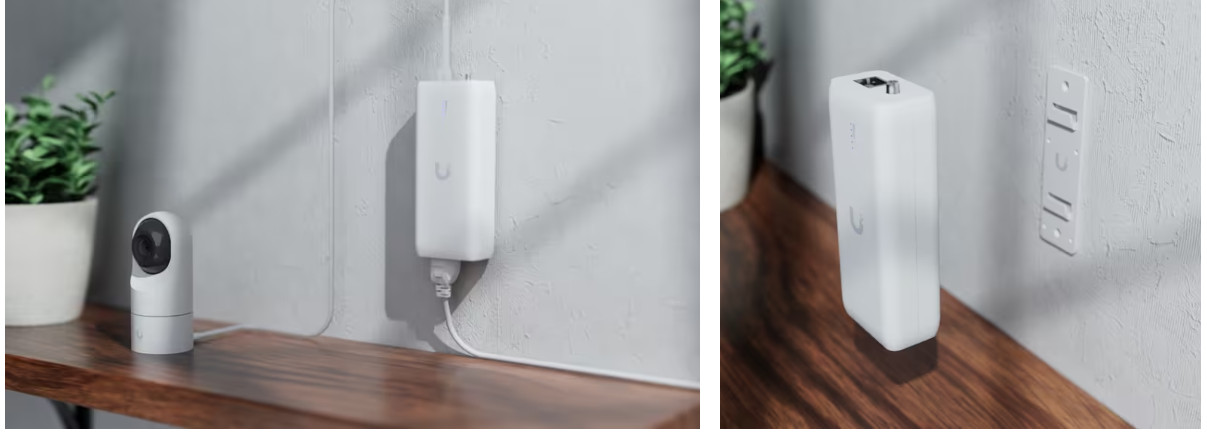

Mounting Locations
Wall, table

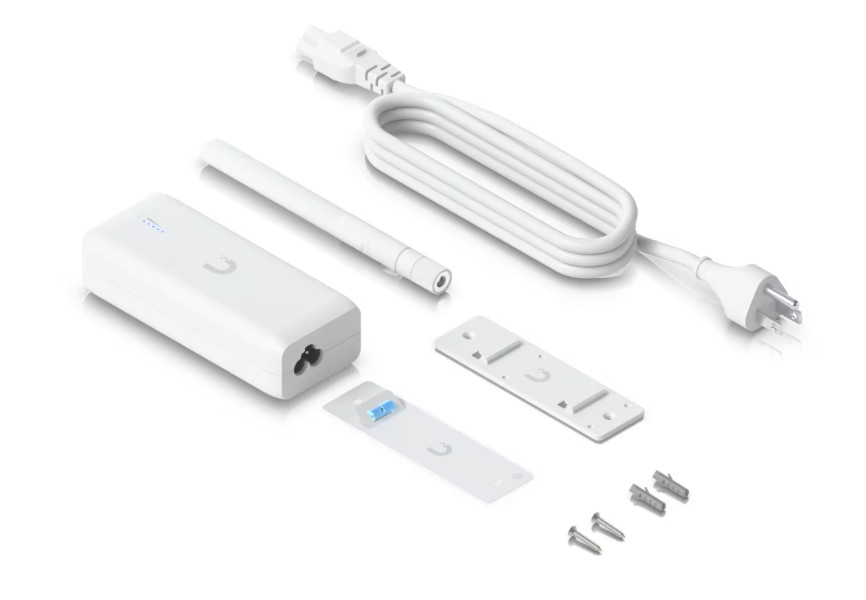

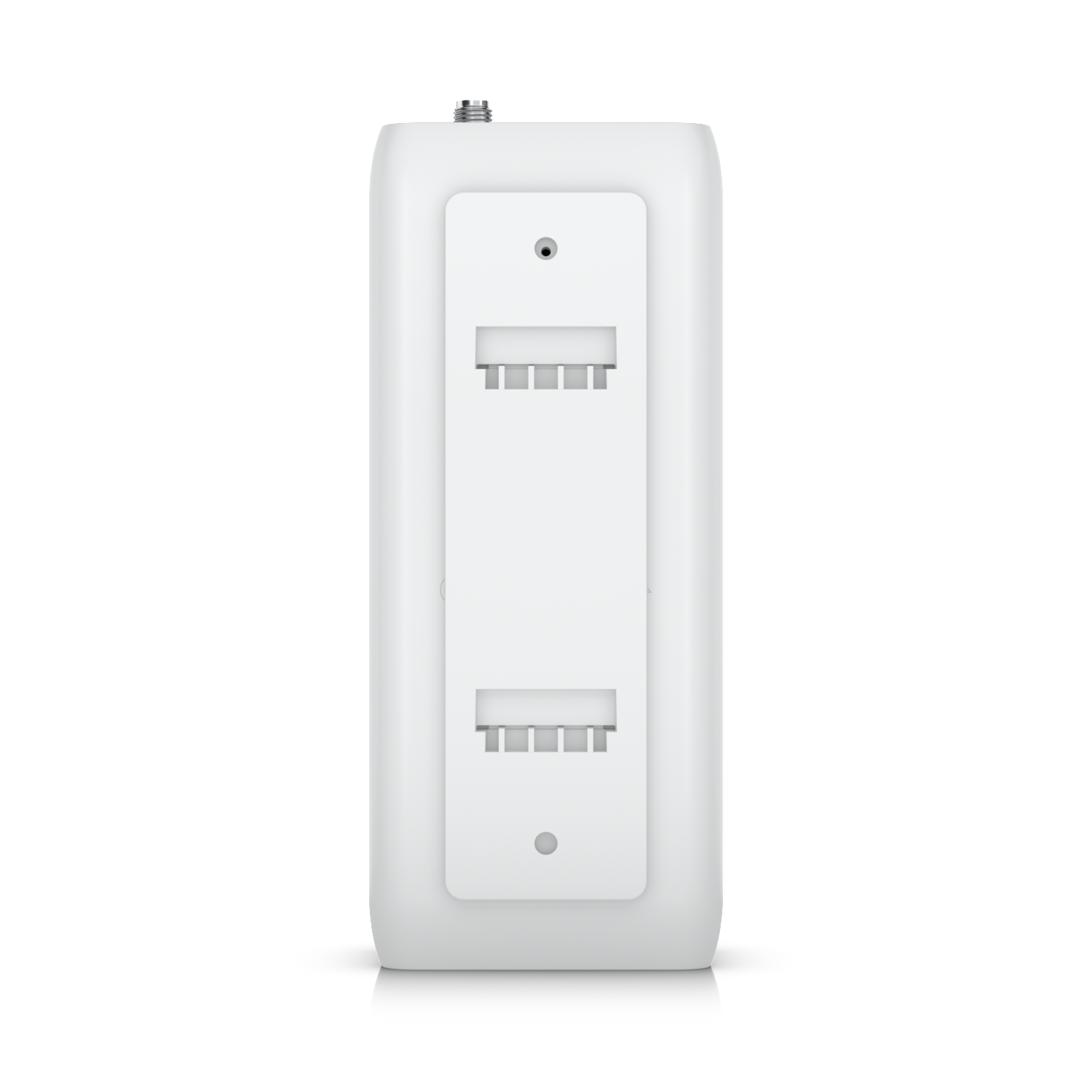

Mounting
Wall (Included)
Power Method
100–240V AC, 0.45A Max., 50/60 Hz
Performance
MIMO
5 GHz
2 x 2
Max. Data Rate
866.7 Mbps (BW80)
Antenna Gain
Internal: 5 dBi External omni: 4 dBi, 360° x 30°
Max. TX Power
21 dBm
Supported Data Rates
802.11ac (WiFi 5)
6.5 Mbps to 866.7 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80)
802.11n
6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11a
6, 9, 12, 18, 24, 36, 48, 54 Mbps
Wireless Security
WPA2 AES
