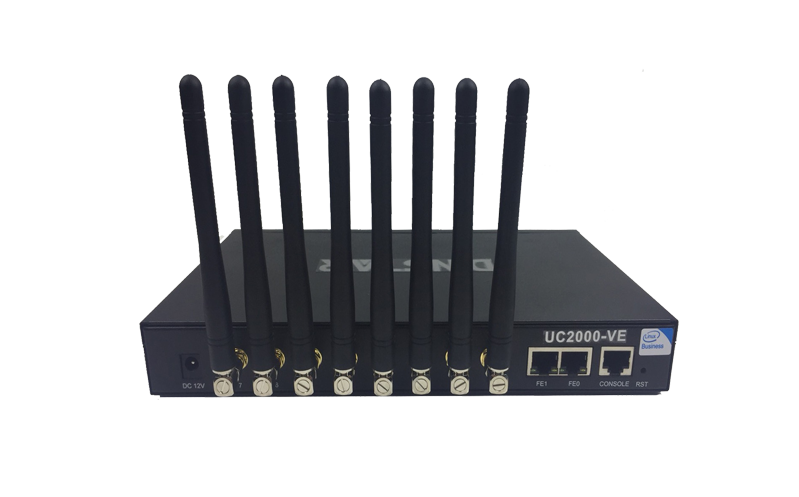

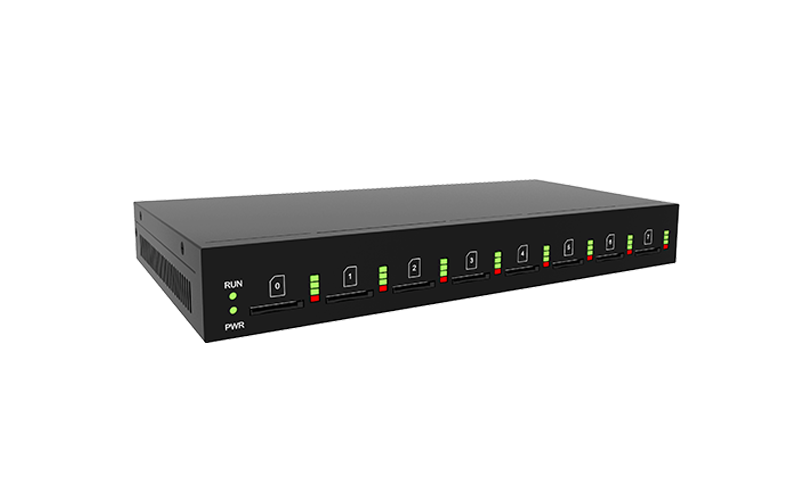

UC2000-VE-8T

>>>รับประกันการใช้งาน 2 ปี<<<

ข้อมูลอุปกรณ์

• DATASHEET

• 4 or 8 GSM/CDMA/WCDMA Channels supported on UC2000-VE

• Support to different mobile networks:

• GSM: 850/900/1800/1900MHz;

• CDMA: 800MHz; WCDMA: 850/900/1900/2100MHz

• HTTP API for SMS Application Integration

• SMS to Email and Email to SMS Flexible Dial Rules and Manipulation Rules

Voice Processing

• Protocol: SIP v2.0, RFC3261

• Codecs:G.711A/U law, G.723.1, G.729A/B

• Silence Suppression

• Comfort Noise Generator(CNG)

• Voice Activity Detection(VAD)

• Echo Cancellation: G.168 with up to 128ms

• Dynamic Jitter Buffer

• DTMF: RFC2833, SIP Info

• Call Progress Tone Generation

• Programmable Gain Control

• NAT: STUN, Dynamic NAT, Static NAT

Software Features

• Calling Type: Mobile to VoIP, VoIP to Mobile

• SIP Trunk and Trunk Group

• Caller/Called Number Manipulation Rules

• SIP Codes Mapping

• White/Black List

• PSTN Hotline

• VoIP Hotline

• Abnormal Call Monitor

• Call Minutes Limitation for Ports/Single Call

• Balance Check

• Low Balance Alarm

• Auto Update SIM Number

• Random Call Interval

• Auto CLIP

• Signaling & RTP Encryption

• SMPP for SMS

Mobile

• SIM Interface: 1.8v, 3.0v SIM Interface

• Frequency Range: GSM: 850/900/1800/1900MHz; CDMA: 800MHz WCDMA:850/900/1900/2100MHz

• USSD Encoding: Unicode/ASCII

• HTTP API for SMS

• Polarity Reversal

• PIN Modify

• CID/CLIR

• SMS Send and Receive

• SMS to Email

• Call Waiting/Call Back

• Call Forward

• GSM Audio Coding: HR, FR,EFR, AMR_FR,AMR_HR

Network

• Static IP, DHCP Client, PPPoE

• Network Protocols:

• TCP/UDP,TFTP, FTP, RTP/ RTCP, SSH,ARP,RARP,ICMP Ping, NTP, HTTP, DNS

• Static/Dynamic ARP Request

• PPTP VPN

Maintenance

• Web/Telnet Configuration

• Configure Backup/Restore

• Firmware Upgrade by HTTP/TFTP

• Factory Reset

• CDR (10000 Lines CDRs Storage Locally)

• Syslog/Filelog

• Ping and Tracert

• Traffic statistics: TCP,UDP,RTP

• VoIP Call Statistics

• PSTN Call statistics: ASR,ACD,PDD

• Voice Diagnose with Loopback

• GSM Network Test

• IVR Customization

• Auto Provisioning

• SIP/RTP/PCM Capture

Physical Interface

• Mobile: 4/8 Channels

• Antennas Connectors: SMA

• Ethernet Interfaces: 2*10/100 Base-T, RJ45

• LED Indicators: Power, RUN, Signal Strength Indicators

• Console: 1* RS232 115200bps

Environmental

• Power Supply Input:100-240V,50-60Hz Output: DC12V 4.0A

• Power Consumption: UC2000-VE-4G: 20w UC2000-VE-8G: 25w

• Temperature(Operation): 0 ℃ ~ 45 ℃ (Storage): -20 ℃ ~80 ℃

• Operation Humidity: 10%-90% No Condensation

• Dimension(W/D/H): 250*156*32.5mm

• Weight: 1.069kg

• Package Weight: 2.05kg
