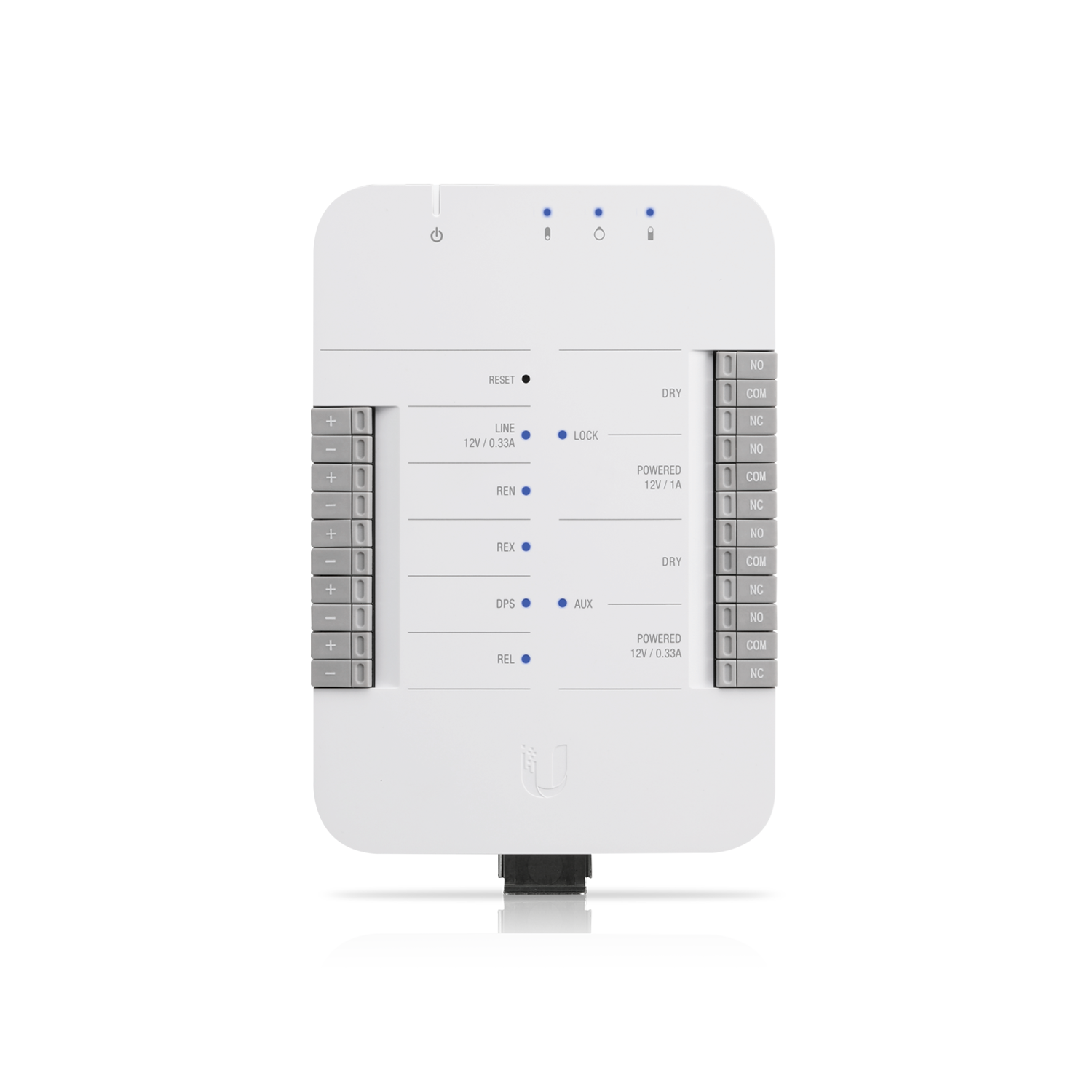

UA-Hub

กลไกประตูที่ให้การควบคุมการเข้าและออกอย่างสมบูรณ์ผ่านเครื่องอ่านการเชื่อมต่อ
✅(2) Lock terminals (12V and Dry)
✅(2) AUX terminals for an external siren and automatic door opener
✅(4) Additional inputs (sensors and buttons)

รหัสสินค้า: UA-Hub

จำนวนสินค้าที่มี : 19

ราคา:

7,990.00 ฿

จำนวน

เลือกสินค้า

สนใจ เปรียบเทียบ บอกต่อเพื่อน

รายละเอียดสินค้า

บริการที่ได้รับ

UA-Hub[Access Hub]

>>>รับประกันการใช้งาน 3 ปี<<

ข้อมูลอุปกรณ์

Datasheet UA-Hub

A single-door mechanism that provides complete entry and exit control via connected Access Readers.
(2) Lock terminals (12V and Dry)
(2) AUX terminals for an external siren and automatic door opener
(4) Additional inputs (sensors and buttons)
Connect and power using PoE++

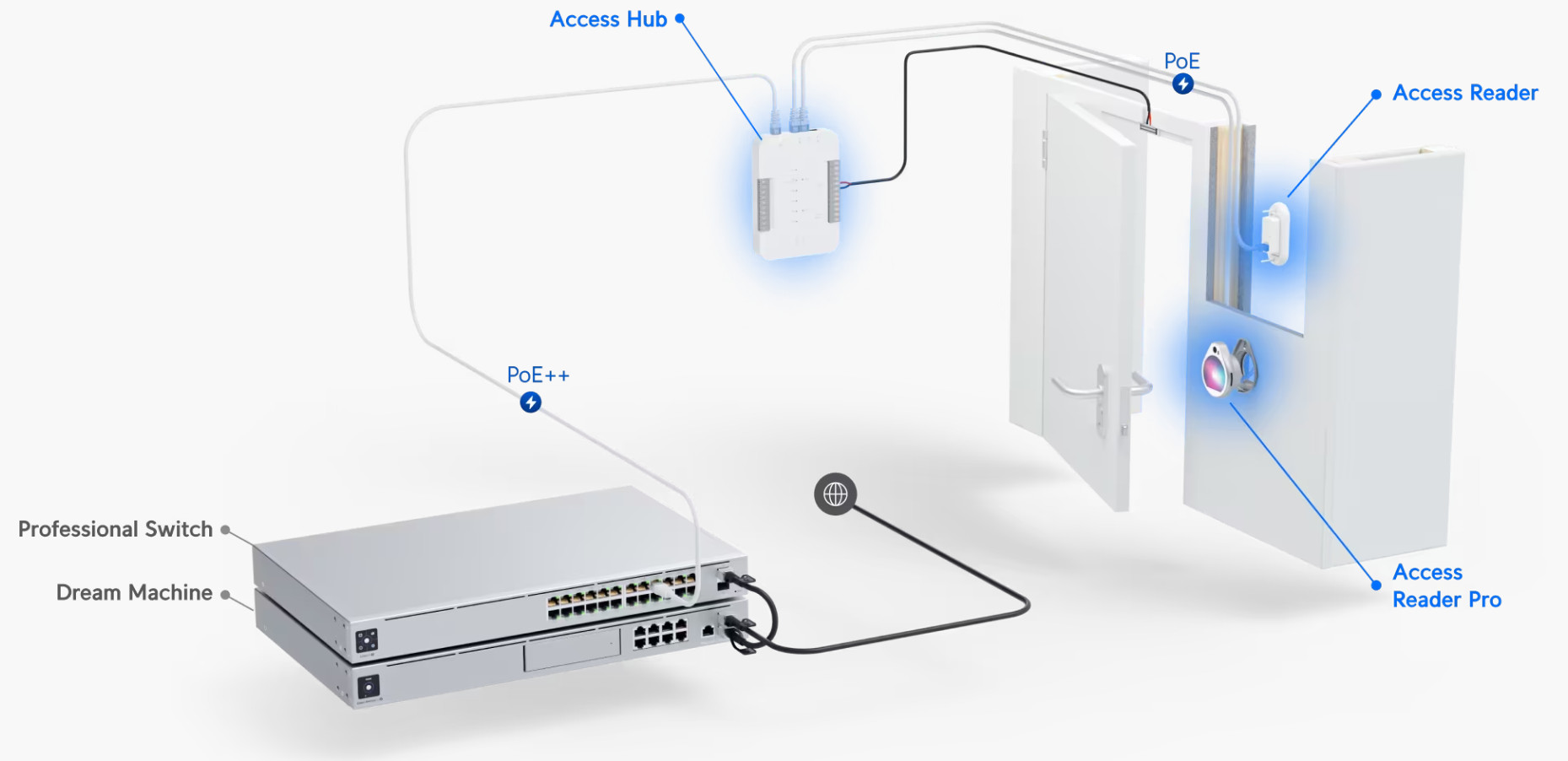

Connect to two UniFi Access readers and one UniFi Protect camera or UniFi Protect Chime

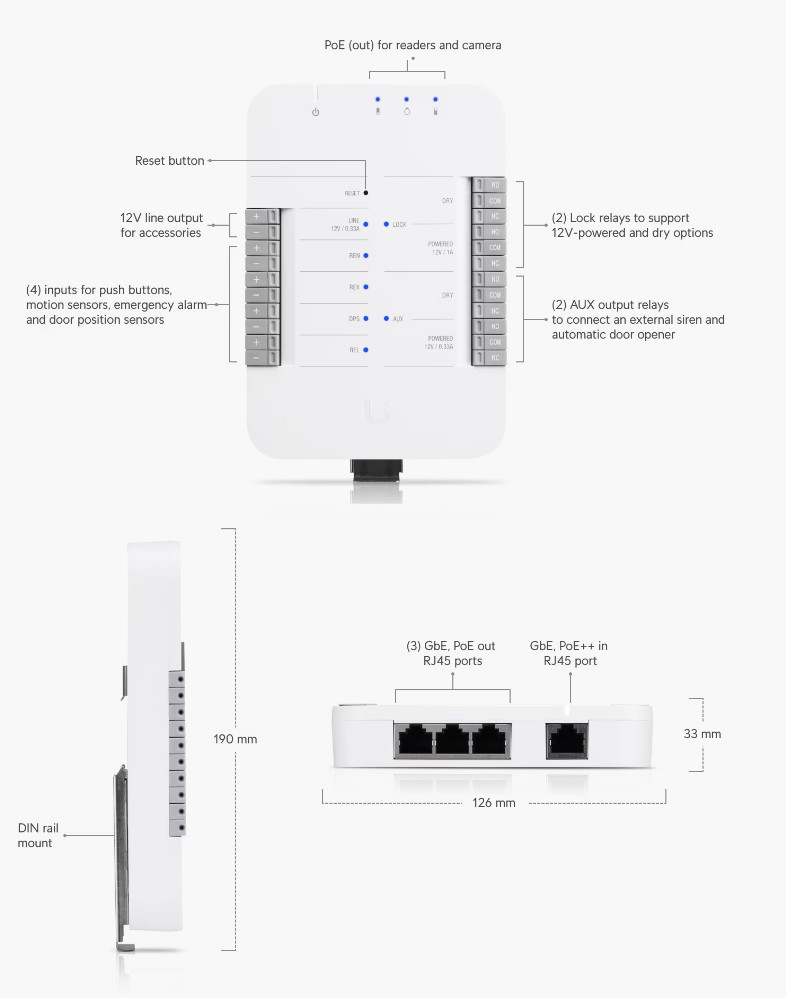

Technical Specifications

Mechanical

Dimensions

190 x 126 x 30.5 mm (7.5 x 5 x 1.2")

Weight

457 g (1 lb)

Enclosure material

Plastic enclosure with metal mount plate

Mounting options

DIN rail

Hardware

Networking interface

(4) 1 GbE

PoE interface

(3) PoE (Pins 1, 2+; 3, 6-)

Power method

PoE++
UL 294 Power-limited Class 2 PSU
UL 60950-1/62368-1 LPS/PS2 PSU

Supported voltage range

48V DC

Max. power consumption

51W

Total available PoE

60W

Max. PoE wattage per port

15.4

Voltage range PoE mode

44–57V DC

Input terminals

REX: request to exit
REN: request to enter
REL: remote release
DPS: door position sensor

Dry output relay

Lock: rated 30V DC, up to 1A
Aux: rated 30V DC, up to 1A

Powered output relay

Lock: 12V DC, up to 1A
Aux: 12V DC, up to 0.33A
Line: 12V DC, up to 0.33A

LEDs

(1) System, (3) PoE out, (4) Input
(2) Output relays, (1) 12 V DC out

Button

(1) Factory reset

Recommend max. cable length

	18 AWG UACC-Cable-DoorLockRelay length	20 AWG length	22 AWG length	24 AWG length
UA-Lock-Electric (400mA)	100 m (328 ft)	66 m (217 ft)	42 m (138 ft)	25 m (82 ft)
UA-Lock-Magnetic-270kg (800mA)	46 m (151 ft)	30 m (98 ft)	20 m (66 ft)	12 m (29 ft)
UA-Lock-Magnetic-540kg (500mA)	80 m (262 ft)	51 m (167 ft)	32 m (105 ft)	20 m (66 ft)
Other locks (1A)	36 m (118 ft)	24 m (79 ft)	15 m (49 ft)	9 m (30 ft)

Operating environment

Indoor use only

Ambient operating temperature

0 to 40° C (32 to 104° F)

Ambient operating humidity

5 to 90% noncondensing

Software information

The software version of a product can be checked at https://unifi.ui.com

UL 294 level

Destructive attack: Level I
Line security: Level I
Endurance: Level I
Standby power: Level I

UL 294 statement

Compliance with IEEE 802.3 specifications was not verified as part of UL 294.
The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.

PoE cabling requirements

Cable 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site.
The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm 2 ) for patch cords; 24 AWG (0.21 mm 2 ) for horizontal or riser cable.

CAN/ULC-60839-11-1 Grade

Grade assignment: I

Certifications

CE, FCC, IC, UL 294, CAN/ULC-60839-11-1

Document number, and issue date and/or revision level

UA-Hub, Ver 02

LED

System

Steady blue: adopted, device is ready
Steady white: pending adoption
Blinking white/blue: upgrading firmware
Breathing white: system initiating

Software

Management application

UniFi Access: Version 1.22.17 and later
