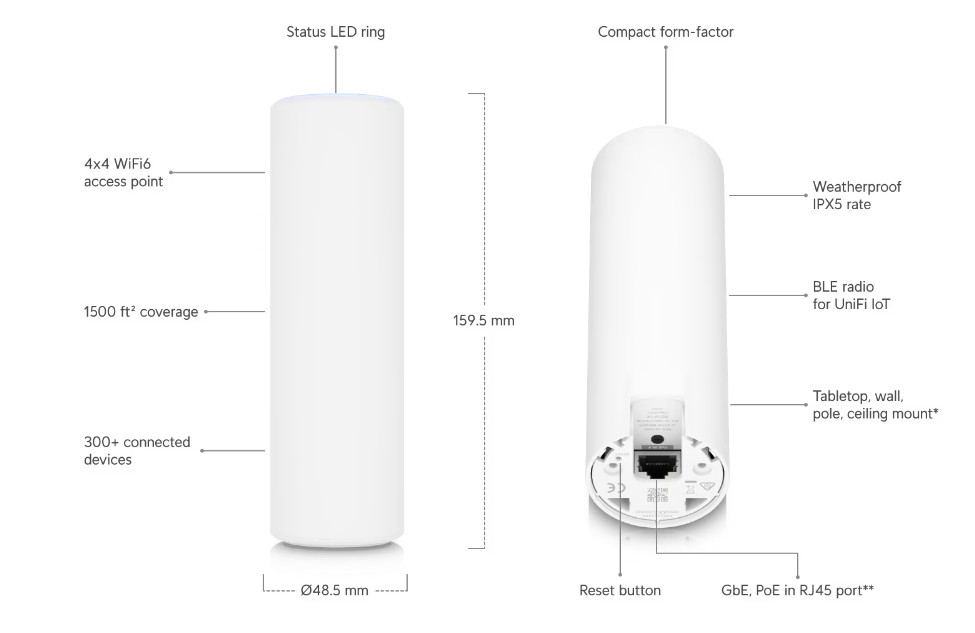

Dimensions

Ø48.5 x 159.5 mm (Ø1.9 x 6.28")

  Weight

400 g (0.88 lb)

  Enclosure material

Plastic, aluminum

  Mount materials

Plastic

  Weatherproofing

IPX5

  Management interfaces

Ethernet
Bluetooth

  Networking interface

(1) GbE RJ45 port

  Button

Factory reset

  LED*

White/blue
*Due to chip supply shortages, the U6 AP's LED has been limited to only white and blue color modes.

  Power method

802.3af PoE

  Power supply

UniFi PoE switch

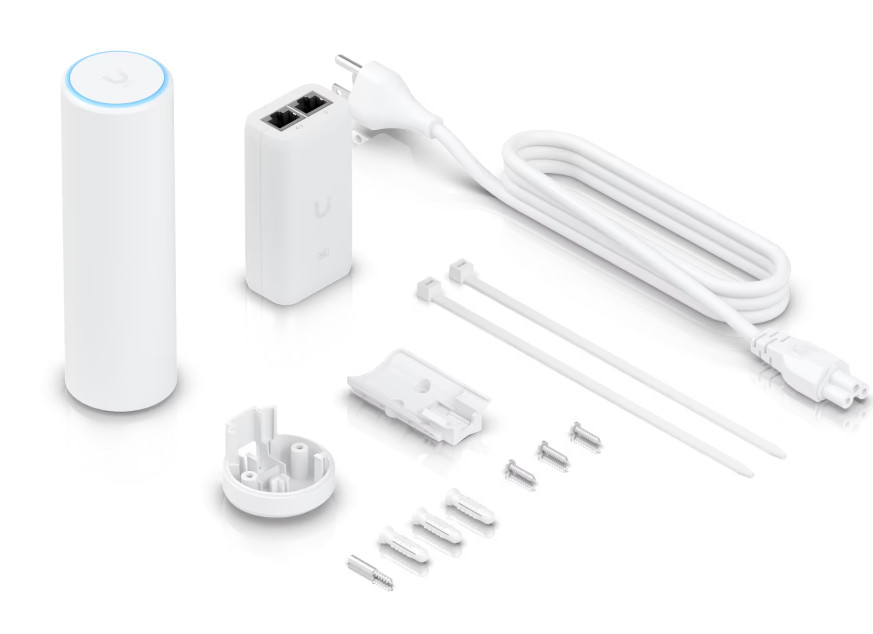

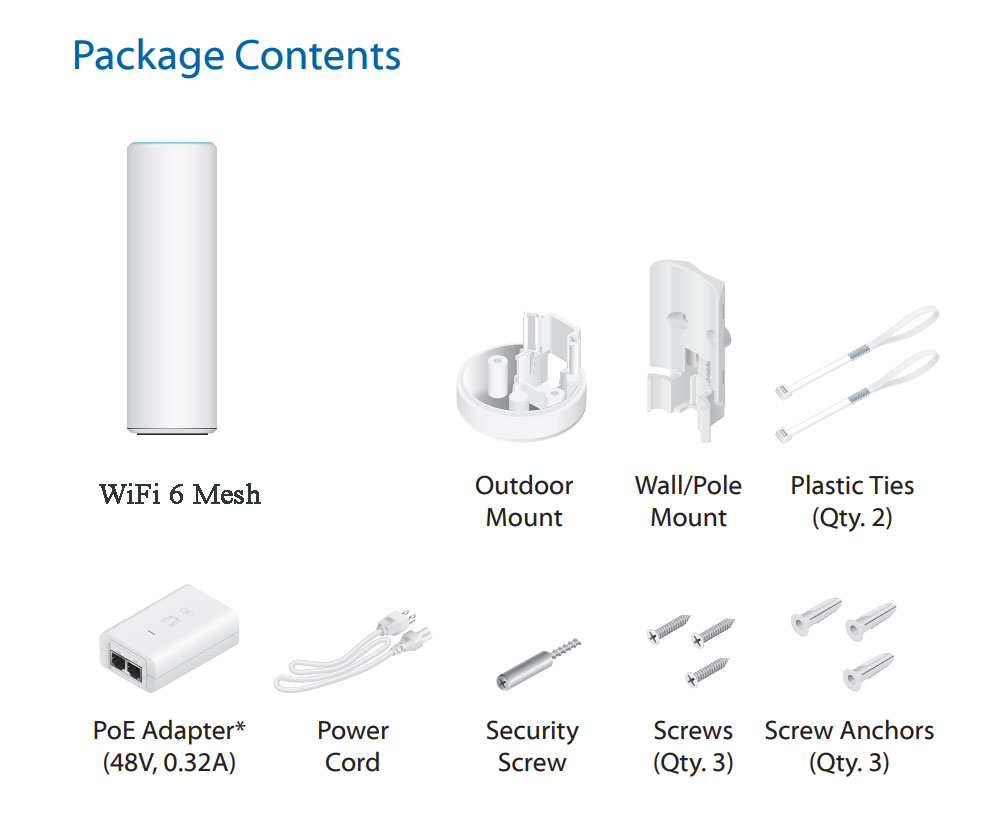

48V, 0.32A PoE adapter (included)

  Supported voltage range

44 to 57VDC

  Max. power consumption

11.4W

  Max. TX power
  2.4 GHz
  5 GHz

22 dBm
26 dBm

  MIMO
  2.4 GHz
  5 GHz

2 x 2 (UL MU-MIMO)
4 x 4 (DL/UL MU-MIMO)

  Throughput rate
  2.4 GHz
  5 GHz

573.5 Mbps
4.8 Gbps

  Antenna gain
  2.4 GHz
  5 GHz

3 dBi
5 dBi

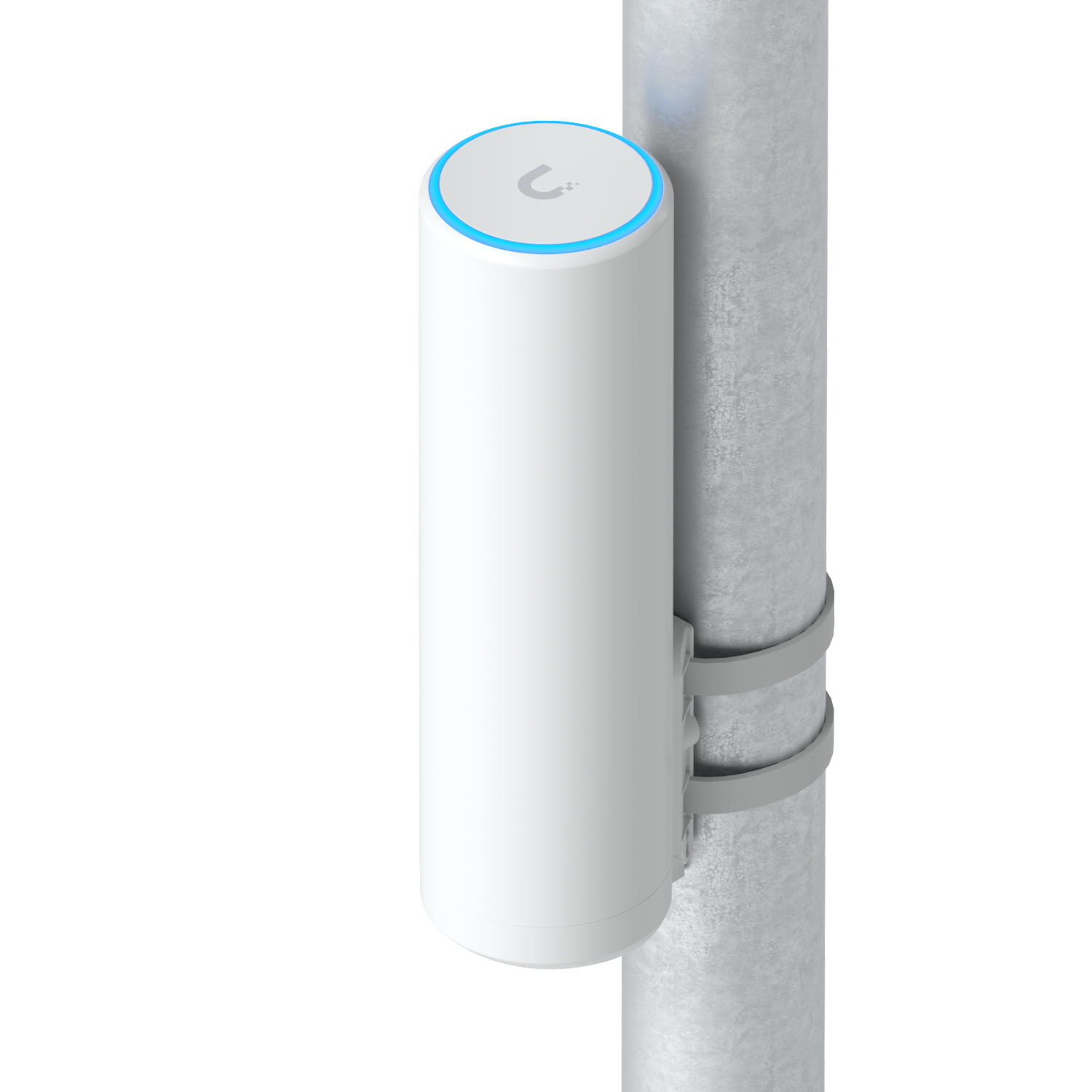

  Mounting

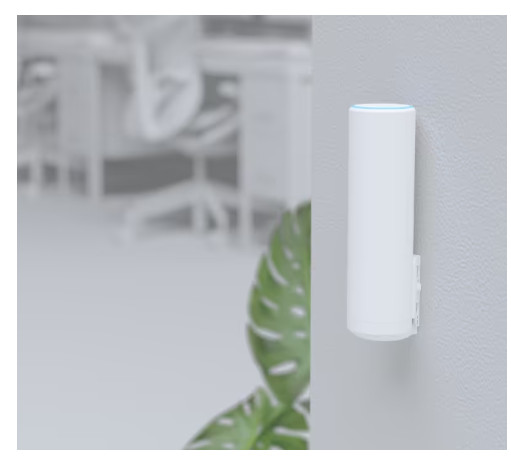

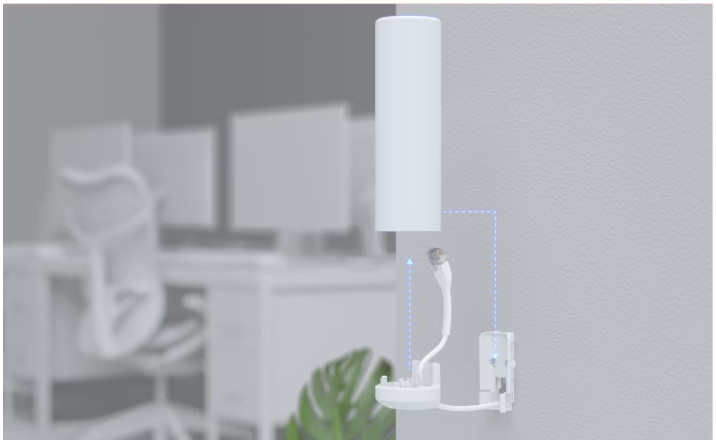

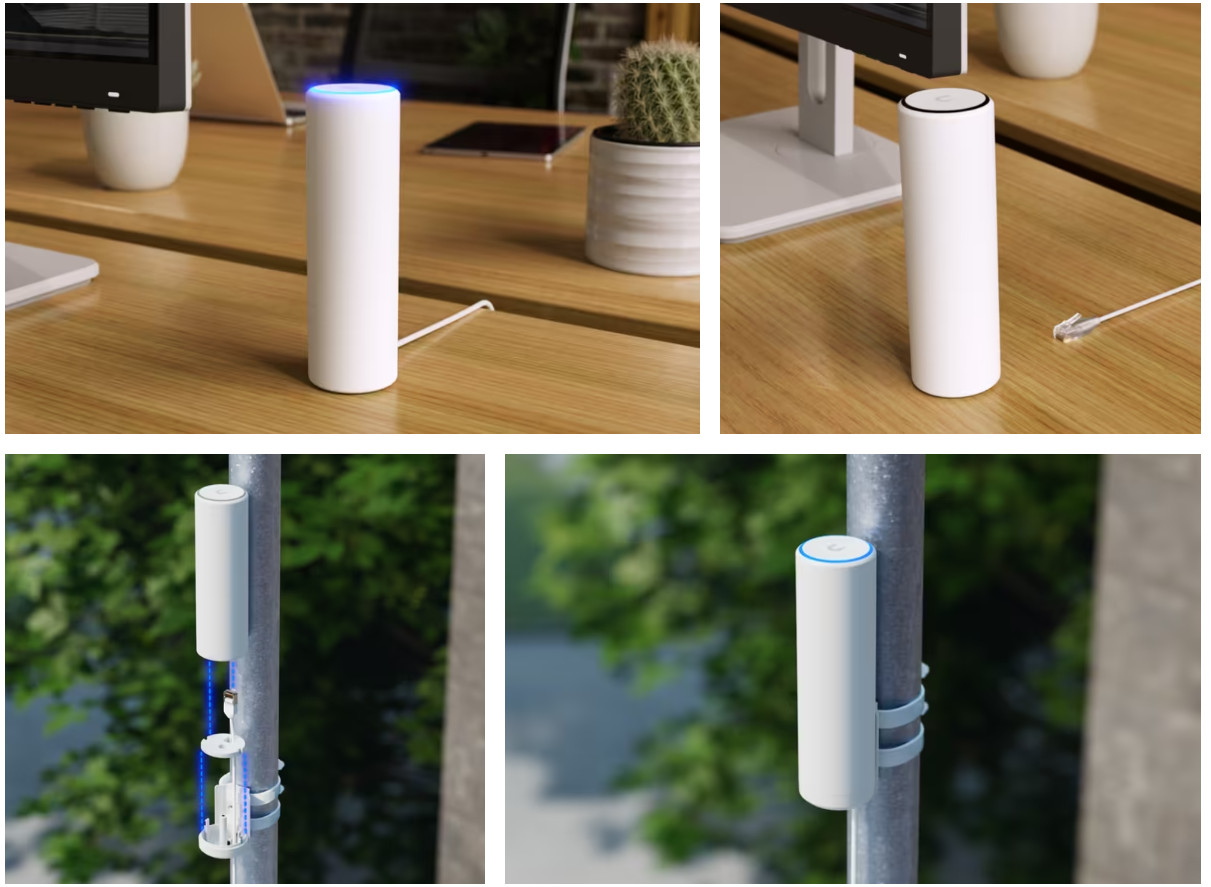

Wall, desktop, pole mount(included)
Ceiling mount (optional)

  Operating temperature

-30 to 60° C (-22 to 140° F)

  Operating humidity

5 - 95% noncondensing

  Certifications

CE, FCC, IC

  WiFi standards

802.11a/b/g
WiFi 4/WiFi 5/WiFi 6

  Wireless security

WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)

  BSSID

8 per radio

  VLAN

802.1Q

  Advanced QoS

Per-user rate limiting

  Guest traffic isolation

Supported

  Concurrent clients

300+

  Zero wait DFS

Yes*
*Supported with upcoming firmware versions

  802.11a

6, 9, 12, 18, 24, 36, 48, 54 Mbps

  802.11b

1, 2, 5.5, 11 Mbps

  802.11g

6, 9, 12, 18, 24, 36, 48, 54 Mbps

  802.11n (WiFi 4)

6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)

  802.11ac (WiFi 5)

6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)

  802.11ax (WiFi 6)

7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)
