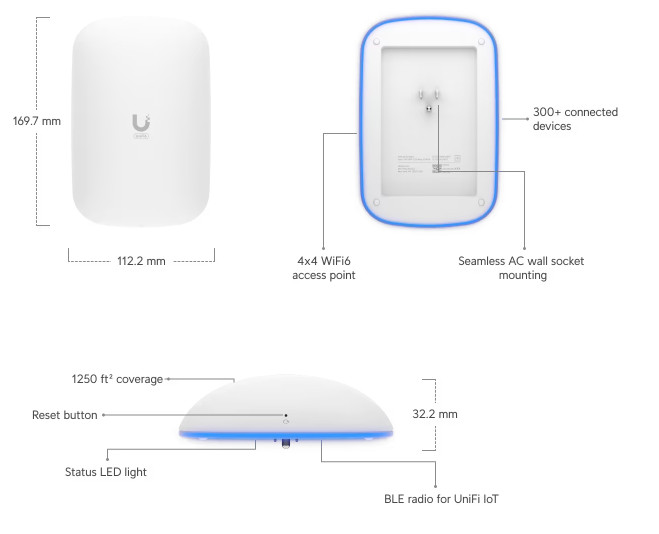

Dimensions

169.7 x 112.2 x 32.2 mm (6.68 x 4.42 x 1.27")

Weight

290 g (10.2 oz)

Enclosure material

Plastic

Management interface

Bluetooth

Power method

Universal AC input, 100—240V AC, 0.3A max., 50/60 Hz

Supported voltage range

110—240V AC

Max. power consumption

11W

Max. TX power
2.4 GHz
5 GHz

22 dBm
26 dBm

MIMO
2.4 GHz
5 GHz

2 x 2 (UL MU-MIMO)
4 x 4 (DL/UL MU-MIMO)

Throughput rate
2.4 GHz
5 GHz

573.5 Mbps
4.8 Gbps

Antenna gain
2.4 GHz
5 GHz

5 dBi
6 dBi

LED

White/blue

Button

Factory reset

Operating temperature

-10 to 50° C (14 to 122° F)

Operating humidity

5 to 95% noncondensing

Certifications

FCC, IC

WiFi standards

802.11a/b/g
WiFi 4/WiFi 5/WiFi 6

Wireless security

WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)

BSSID

8 per radio

VLAN

802.1Q

Advanced QoS

Per-user rate limiting

Guest traffic isolation

Supported

Concurrent clients

300+

Zero wait DFS

Yes

802.11a

6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11b

1, 2, 5.5, 11 Mbps

802.11g

6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11n (WiFi 4)

6.5 Mbps to 600 Mbps (MCS0 - MCS31 , HT 20/40)

802.11ac (WiFi 5)

6.5 Mbps to 3.4Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)

802.11ax (WiFi 6)

7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)
