Model

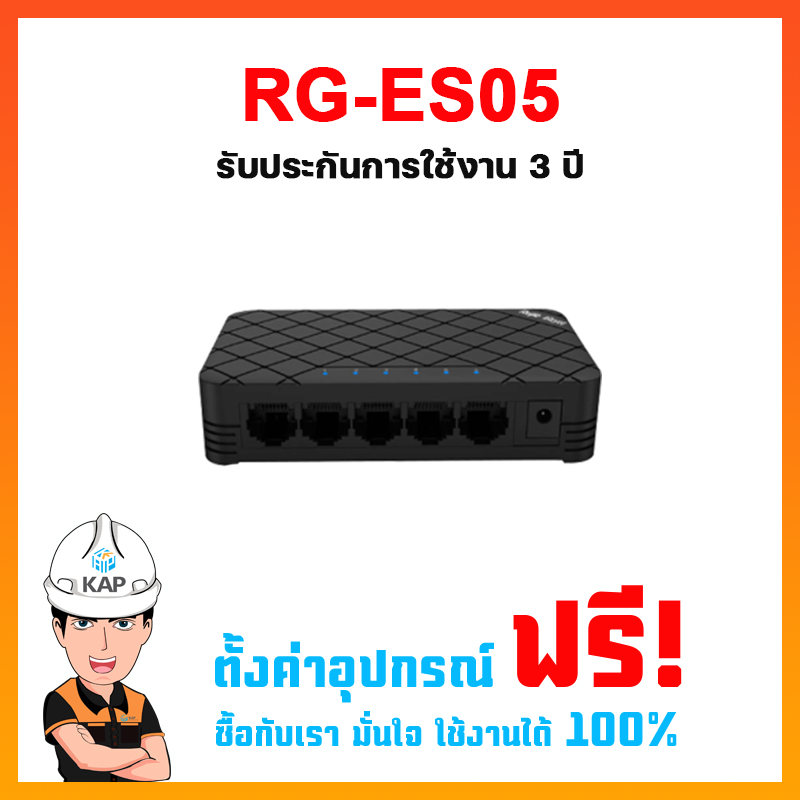

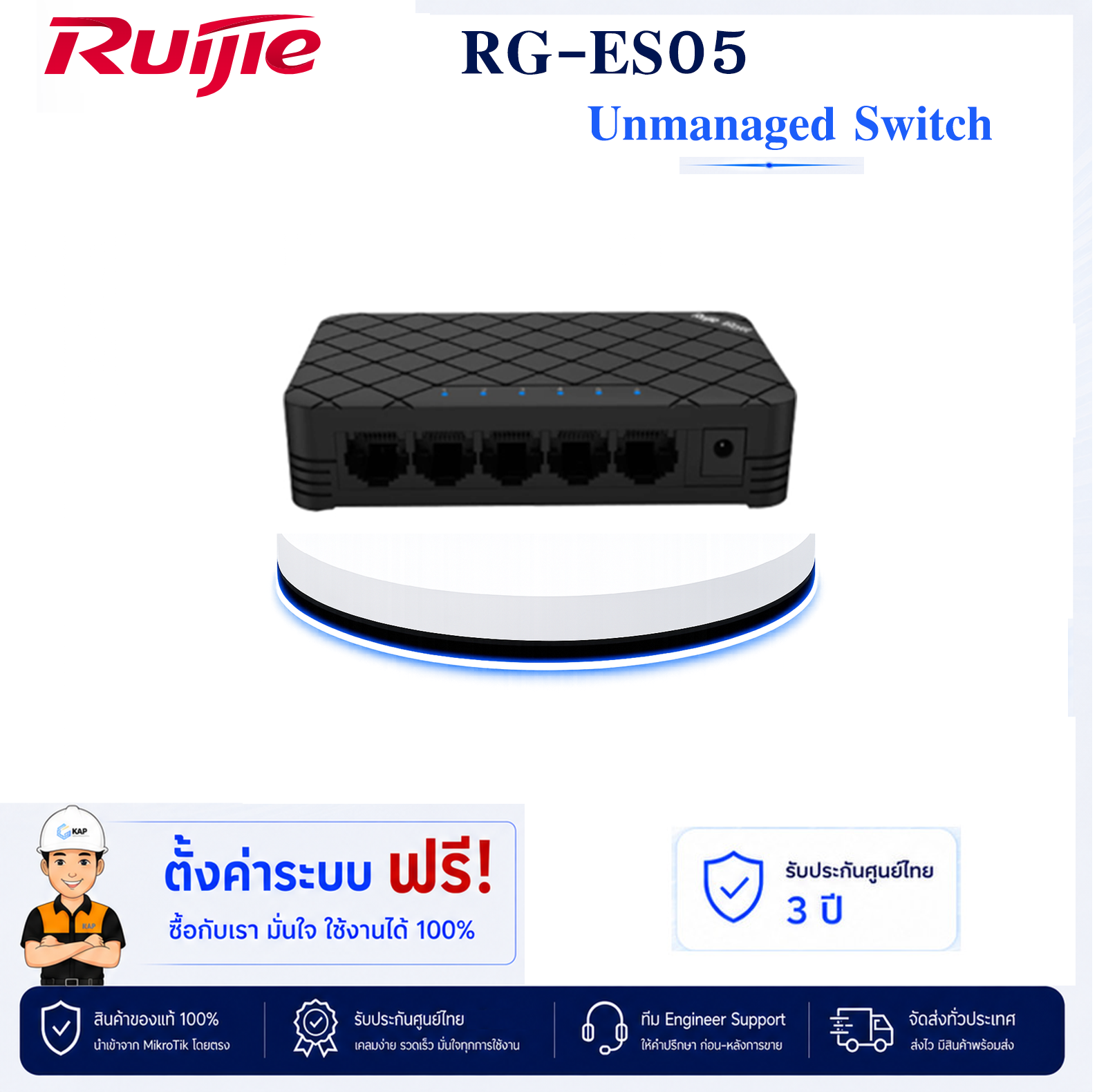

RG-ES05
Ports
5 10/100M Base-T ports
Operating mode
Half-duplex, full-duplex, auto-negotiation mode
Support auto MDI/MDIX
Backplane bandwidth
1Gbps
Packet forwarding rate
0.744Mpps
MAC address
1K
Power supply
External, DC 5.0V / 600mA
Maximum power consumption
≤2.5W
Fan
Fanless
Dimensions
108.1mm*64mm*24.8mm
Temperature
Operating temperature: 0 ℃ ~ 40 ℃
Storage temperature: -40 ℃ ~ 70 ℃
Humidity
Operating humidity: 10% ~ 90% RH
Storage humidity: 5% ~ 95% RH
