Model

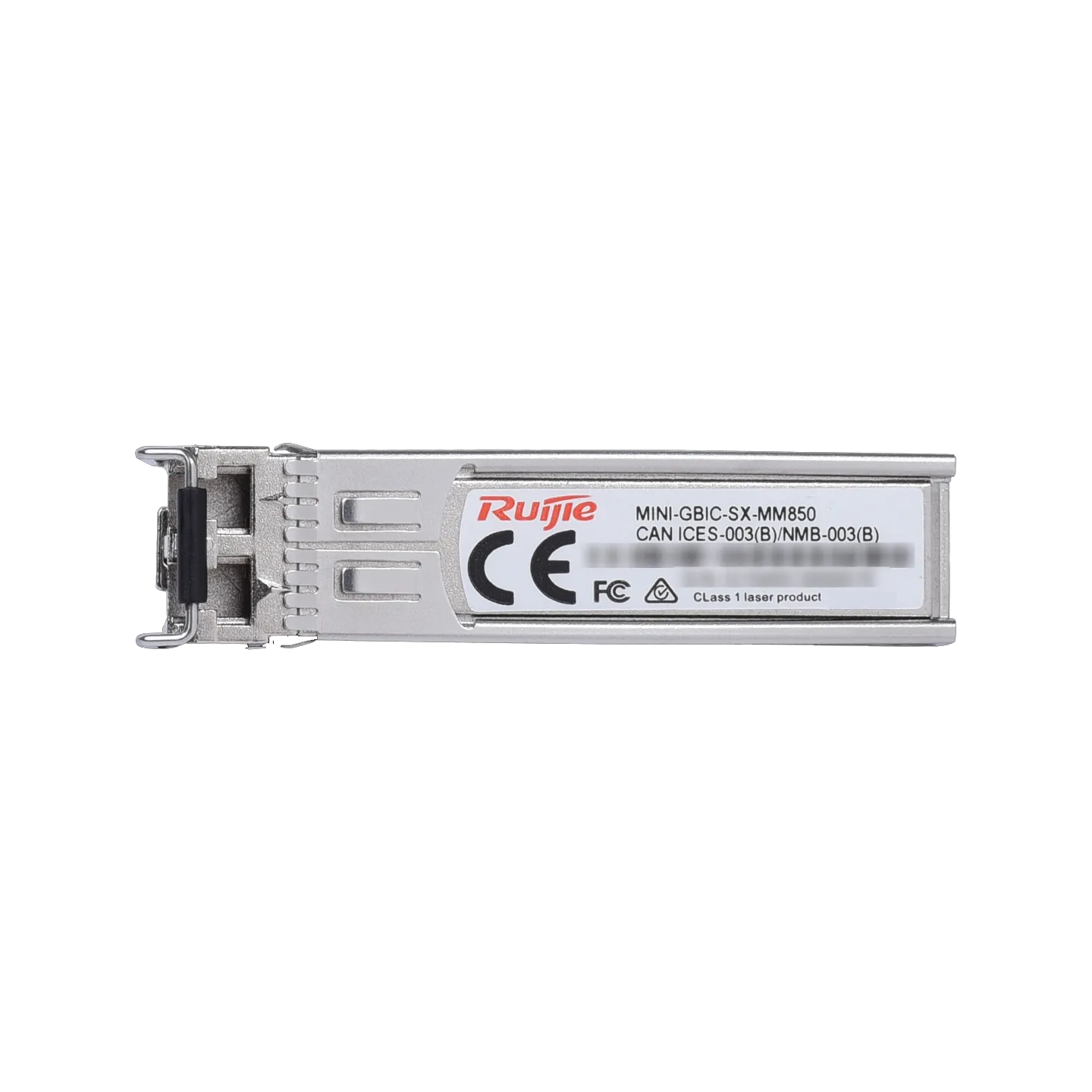

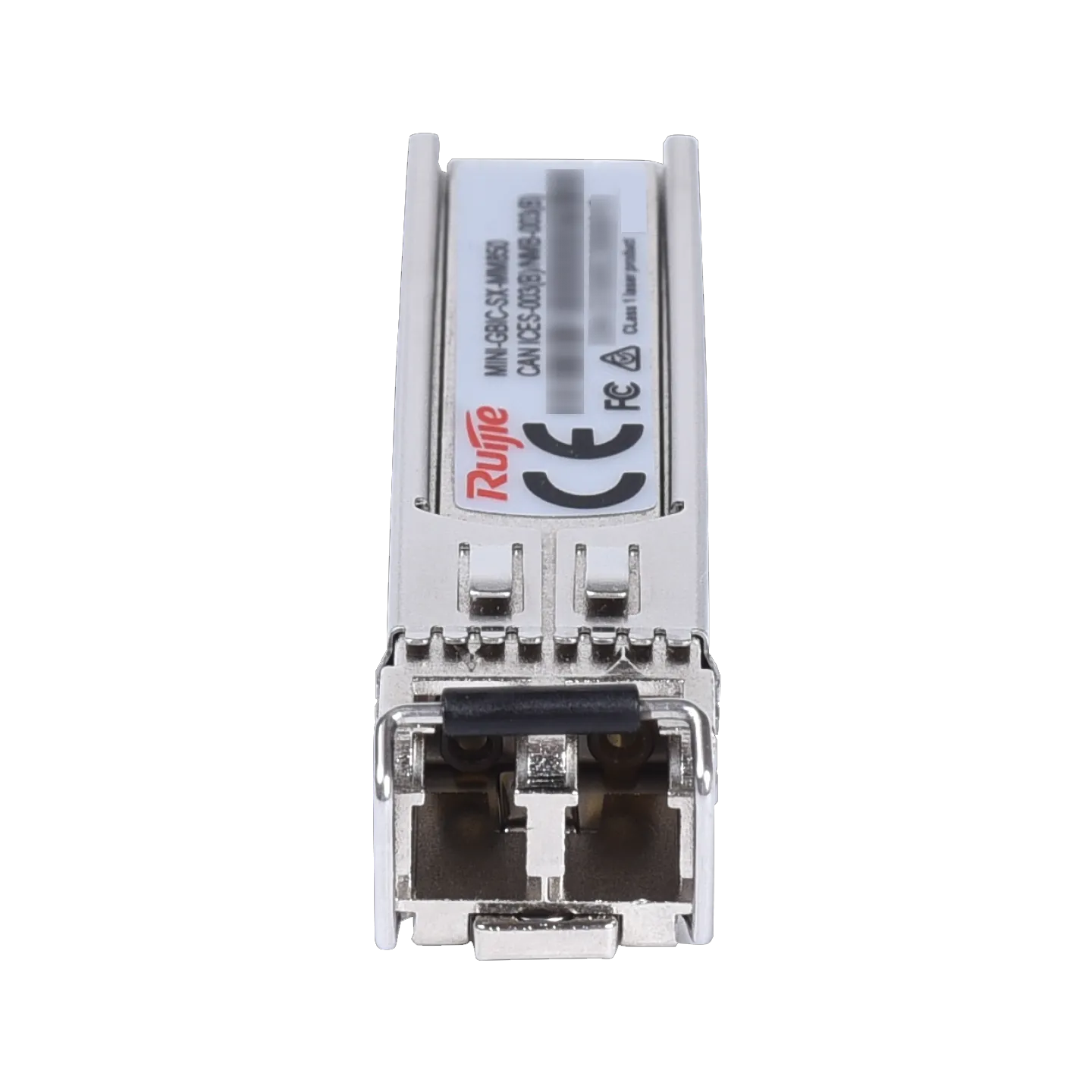

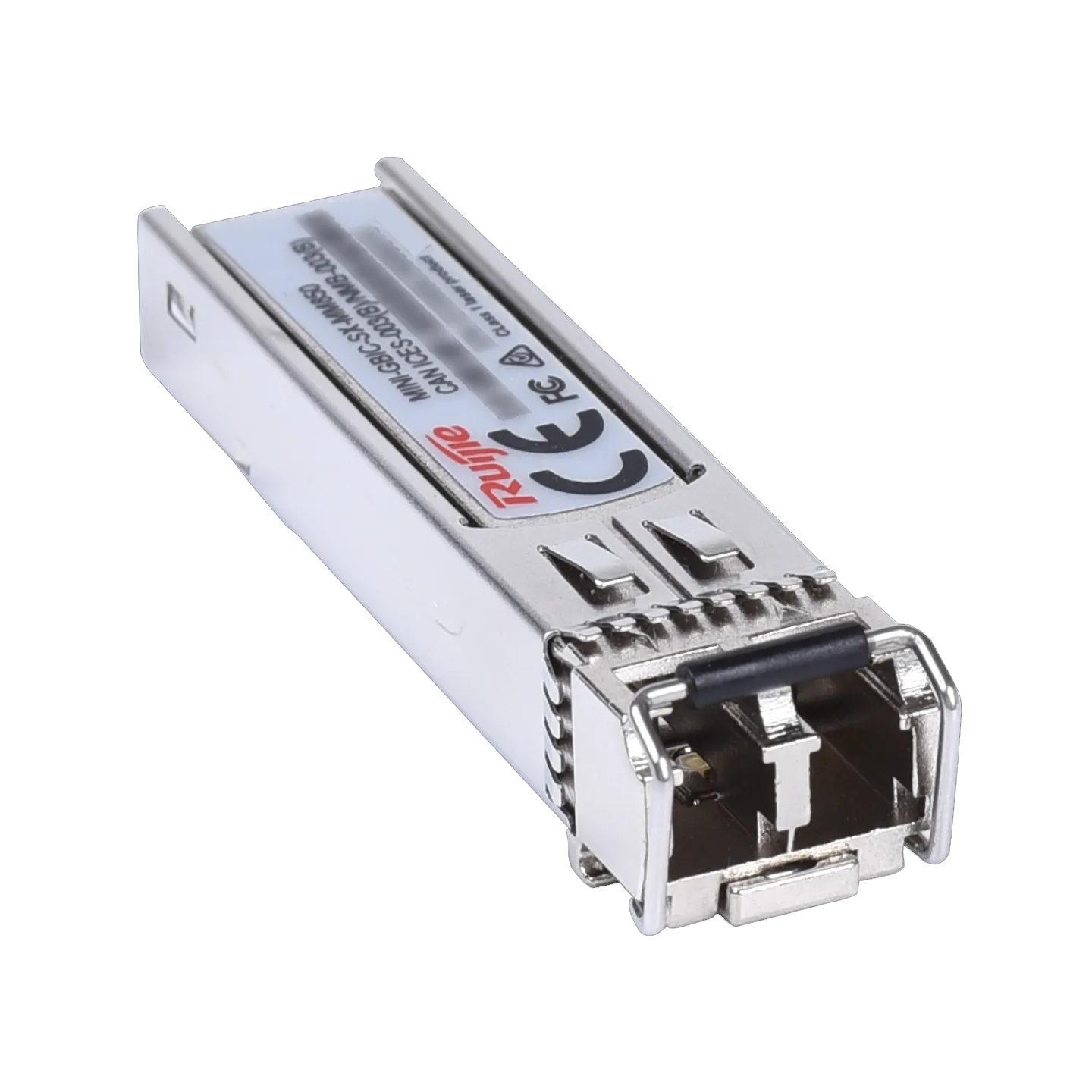

MINI-GBIC-SX-MM850
Data rate
1.25 Gbps
Form factor
SFP
Connector type
Duplex LC
Cable type
MMF
Fiber end face finish type
Ultra Physical Contact (UPC)
Transmitter type
VCSEL
Receiver type
PIN
Reach
550 m (1,804.46 ft.)
Bit error ratio (BER)
1.00E-12
Data diagnosis-capable (DDM/DOM)
Yes
Power consumption
≤ 1.5 W
Transmitter Optical Parameters
Wavelength (nm)
850
Max. transmit power (AVG)
0 dBm
Min. transmit power (AVG)
–9.5 dBm
Min. extinction ratio
≥ 9 dB
Receiver Optical Parameters
Receive sensitivity (OMA)
< –17 dBm
Overload optical power (AVG)
Environment and Reliability
Operating temperature
0°C to 70°C (32°F to 158°F)
Operating humidity
10% RH to 90% RH
Storage temperature
–40°C to +85°C (–40°F to +185°F)
Storage humidity
Dimensions and Weight
Dimensions (W x D x H)
56.5 mm x 13.5 mm x 8.5mm (2.22 in. x 0.53 in. x 0.33 in.)
Weight
35 g (0.08 lbs.)
