Model

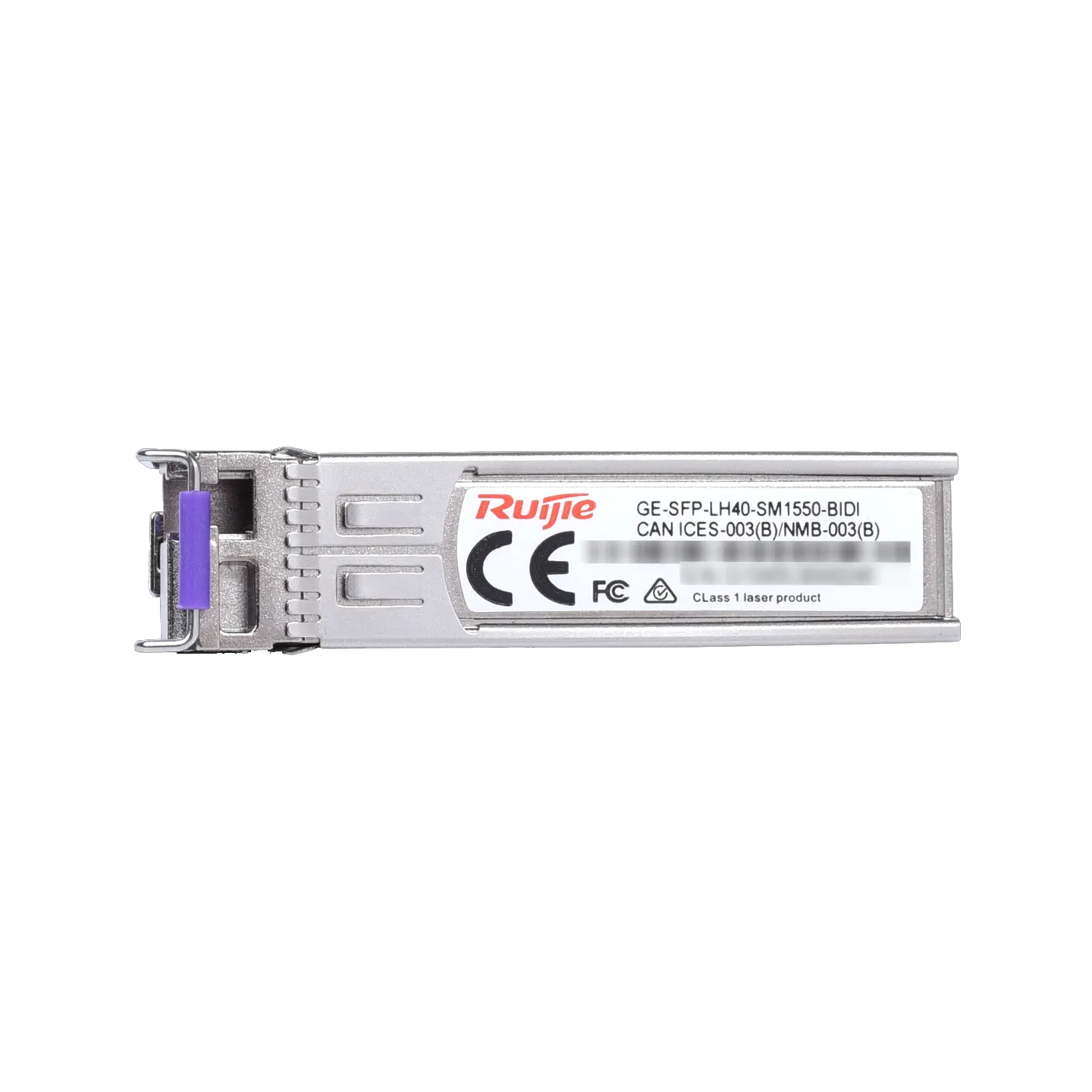

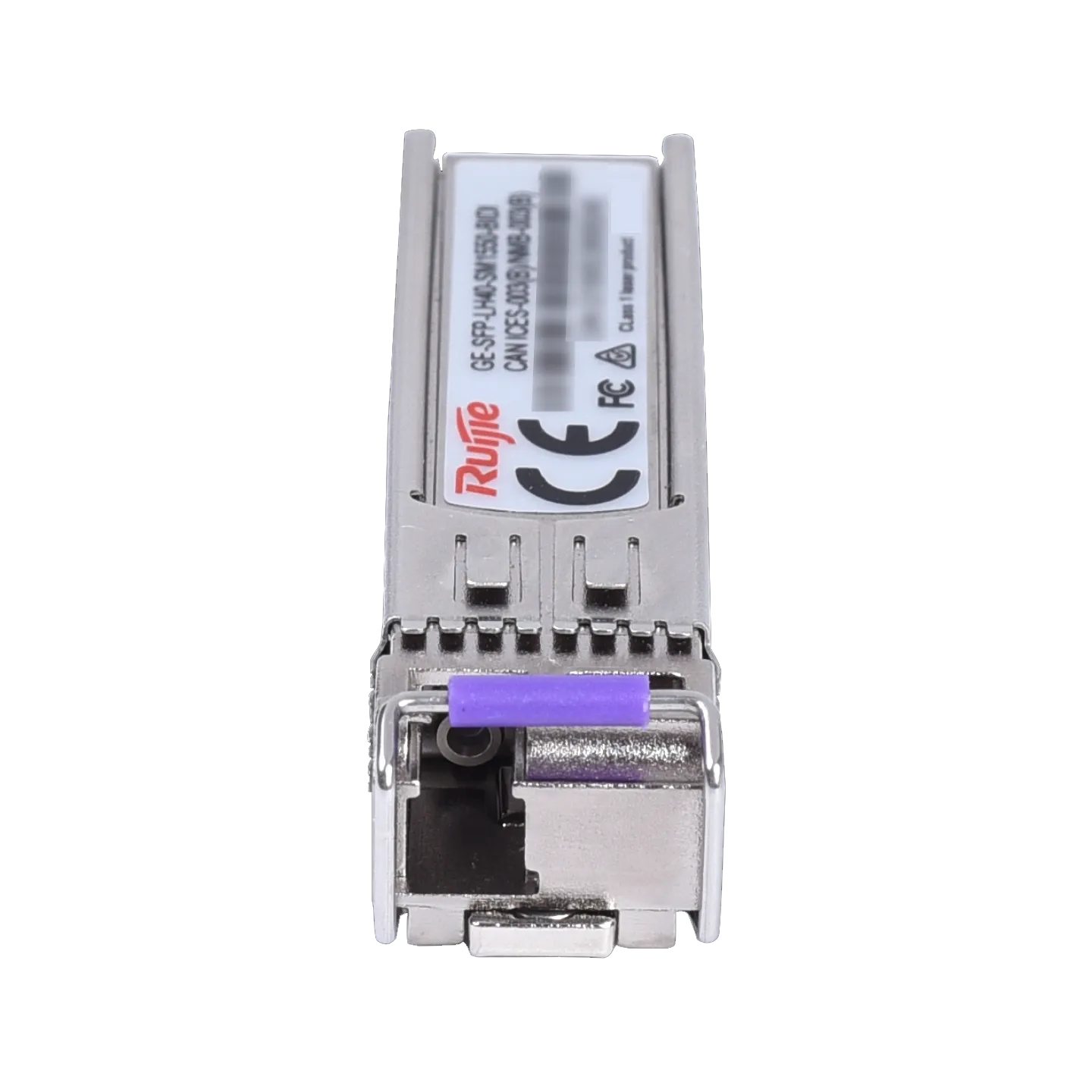

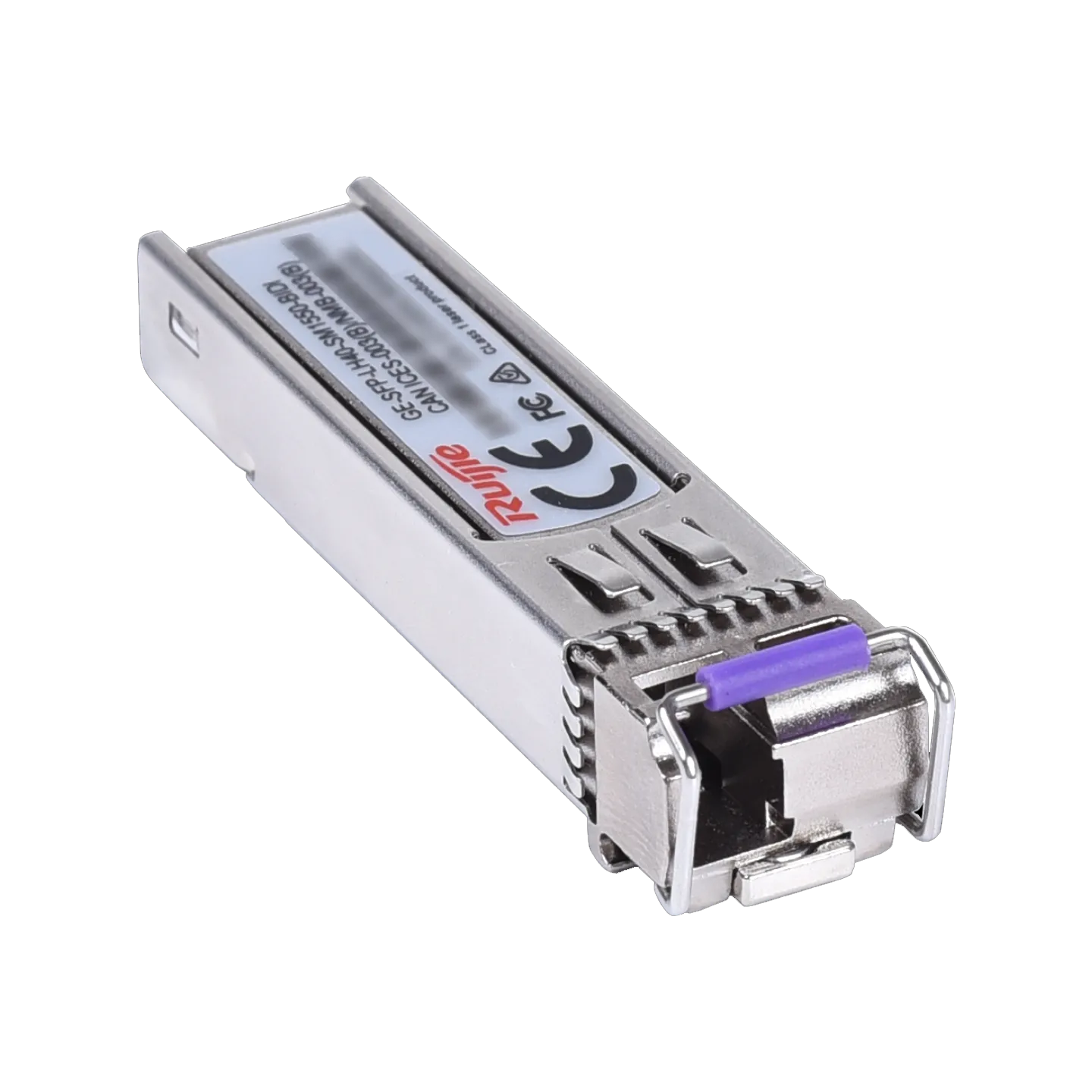

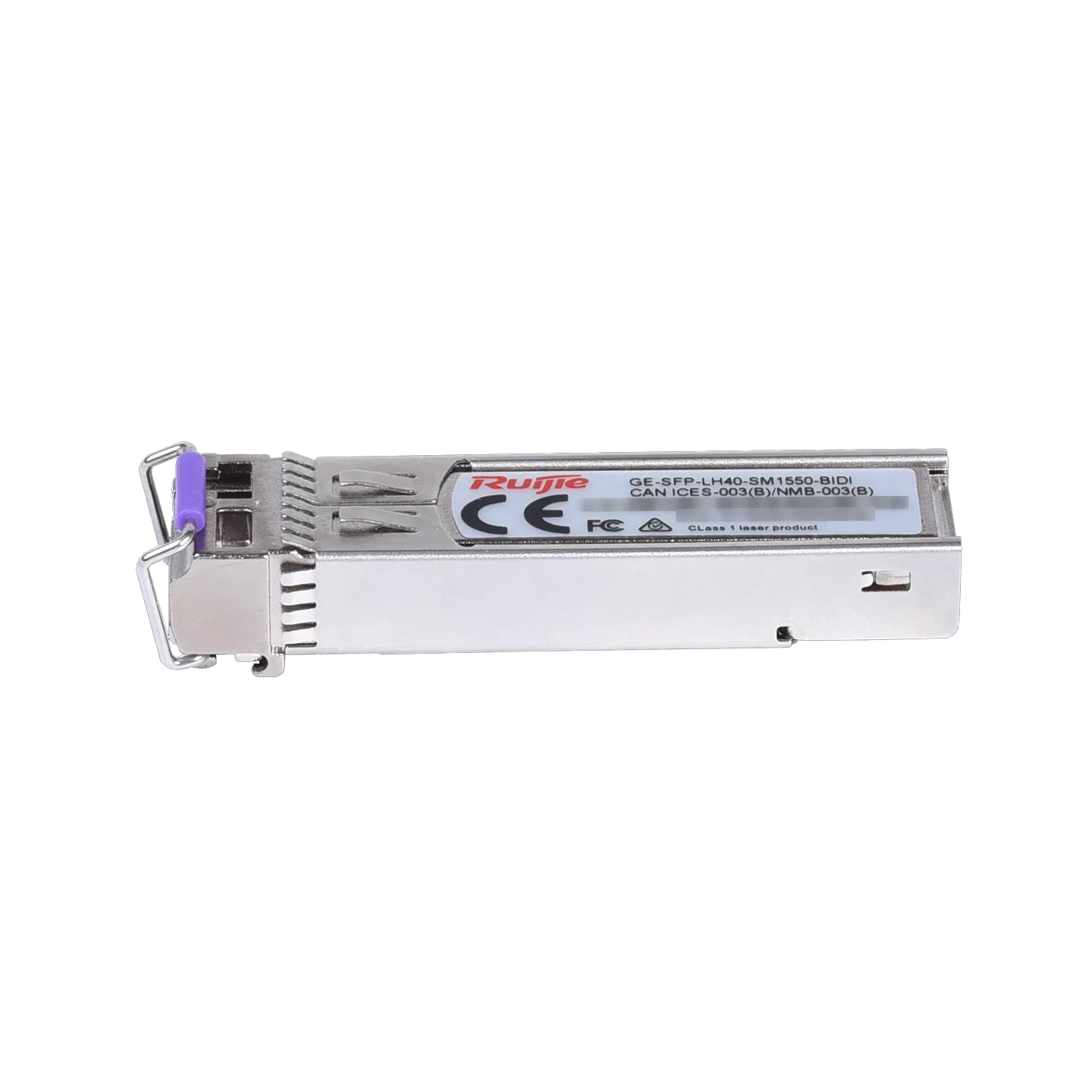

GE-SFP-LH40-SM1550-BIDI
Data rate
1.25 Gbps
Form factor
SFP
Connector type
BIDI LC
Cable type
SMF
Fiber end face finish type
Ultra Physical Contact (UPC)
Transmitter type
DFB
Receiver type
PIN
Reach
40 km (131,233.60 ft.)
Bit error ratio (BER)
1.00E-12
Data diagnosis-capable (DDM/DOM)
Yes
Power consumption
≤ 1.5 W
Transmitter Optical Parameters
Wavelength
1550 nm TX
1310 nm RX
Max. transmit power (AVG)
0 dBm
Min. transmit power (AVG)
–5 dBm
Min. extinction ratio
≥ 9 dB
Receiver Optical Parameters
Receive sensitivity (OMA)
< –23 dBm
Overload optical power (AVG)
–3 dBm
Environment and Reliability
Operating temperature
0°C to 70°C (32°F to 158°F)
Operating humidity
5% RH to 95% RH
Storage temperature
–40°C to +85°C (–40°F to +185°F)
Storage humidity
Dimensions and Weight
Dimensions (W x D x H)
56.5 mm x 13.5 mm x 8.5mm (2.22 in. x 0.53 in. x 0.33 in.)
Weight
35 g (0.08 lbs.)
