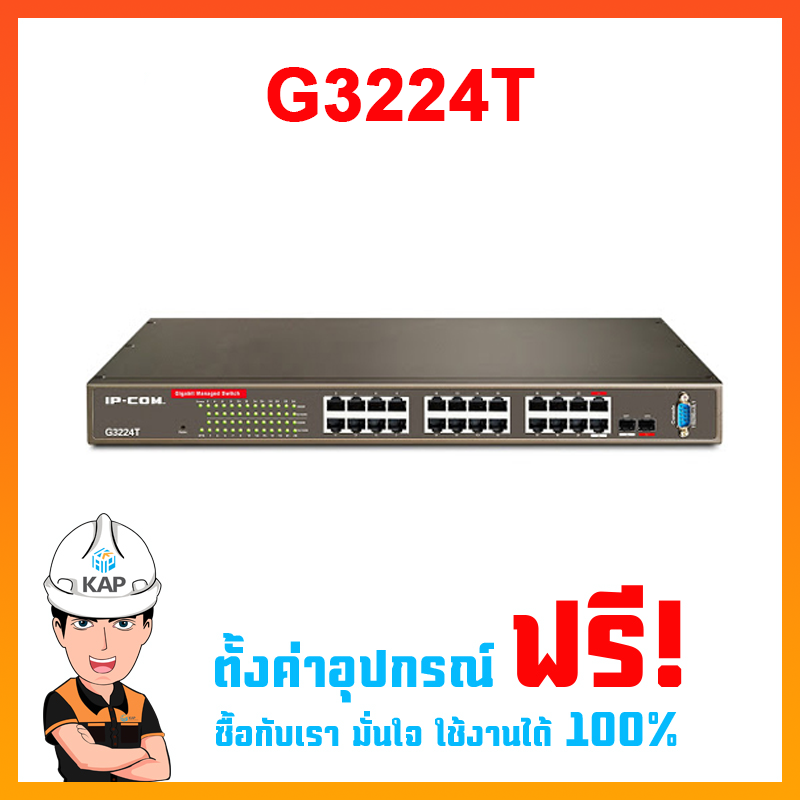

Model

G3224T

Description

10/100/1000 Smart Switch

Login IP address

192.168.0.1

User name\Password

For administrator: admin\admin
For user: user\user

Standard and protocol supported

IEEE 802.3、IEEE 802.3u、IEEE 802.3z、IEEE 802.3ab、IEEE 802.3x、IEEE 802.1D、IEEE 802.1W、IEEE 802.1Q、IEEE 802.1p、IEEE 802.1x、
IEEE 802.3 NWay、SNMP

Backplane bandwidth

56Gbps

Forwarding mode and capacity

Linear-speed forwarding up to 48Gbit/s

MAC Address entries

8K

Dimension

440*284*44mm(LXWXH)

3C

Yes

Relative Humidity(Operational)

10%～90% RH（noncondensing）

Relative Humidity(Storage)

5%～95% RH（noncondensing）

Operating Temperature

0℃～45℃

Storage Temperature

-40℃～70℃

Power Supply

AC 100～240V 1.2A(Max) 50～60Hz

Power consumption

<20W

Port & Module

24 GE Port and 2 SFP(combo)

Indicators

POWER; SYS; LINK/ACT; SPEED; SPF

Connector and cabling

CAT 5e
1000Base-SX: MMF(Multimode fiber)， 1000Base-LX：SMF（Single-mode fiber）
