Technical specification
802/11b/g/n
802.3af/at
Internal antennas
(2) 4dBi 2.4GHz Omni-directional

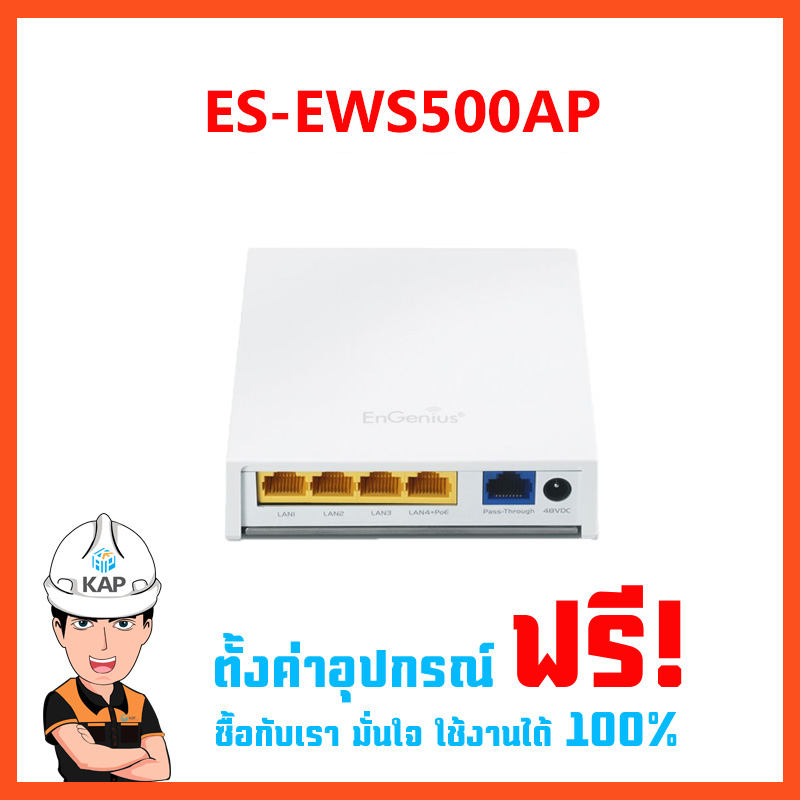

Physical interface 1* 10/100/1000 Mbps uplink port with 802.3af/at PoE 3* 10/100Mbps access ports 1* 10/100Mbps access port with PoE output (Supports 802.3af output when PoE input is 802.3at) 2* RJ45 pass through ports 1* 110 punch down block 1* DC power connector 1* Reset button
LED Indicators
1* Power
1* WAN
1* 2.4GHz
1* LAN 1-4
Power source
DC input: 48VDC/0.8A
Memory capacity
RAM: 128 MB
Flash: 16 MB
Wireless & radio specifications
Operating frequency
2.4GHz, Single-band
Operation modes
AP mode
Transmit power (combined)
2.4GHz: max 20 dBm
Radio chains/Spatial streams
2 x 2: 2
Supported data rates (Mbps)
2.4 GHZ: Max 300
802.11b: 1, 2, 5.5, 11
802.11g: 6, 9, 12, 18, 24, 36, 48, 54
802.11n: 6.5 to 300 (MCS0 to MCS15)
Supported radio technologies
802.11b: Direct-Sequence Spread-Spectrum
(DSSS)
802.11g/n: Orthogonal Frequency-Division
Multiplexing (OFDM)
Channelization
802.11n with 20/40MHz channel width
802.11b/g with 20MHz channel width
Supported modulation
802.11b: BPSK, QPSK, CCK
802.11g/n: BPSK, QPSK, 16-QAM, 64-QAM
Management
Deployment options
Stand alone mode
Managed mode (by Neutron switch/ezMaster)
Auto-channel selection Multiple SSID: 8 SSIDs per frequency band VLAN tag/VLAN pass-through Wireless client list Guest networks Mobility: PMKSA support for Fast Roaming Firmware upgrade: Web Interface or CLI (FTP/HTTP) Backup/Restore settings Schedule reboot Email alert/Syslog notification
Configuration
Web Interface (HTTP)
SNMP v1/v2c/v3
MIB I/II, Private MIB
CLI (Telnet)
