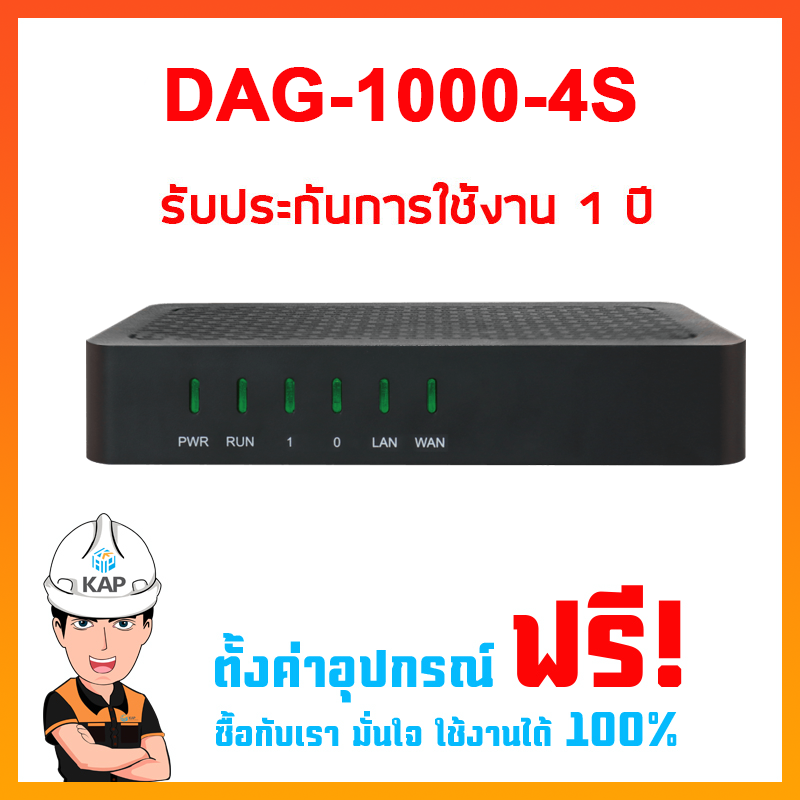

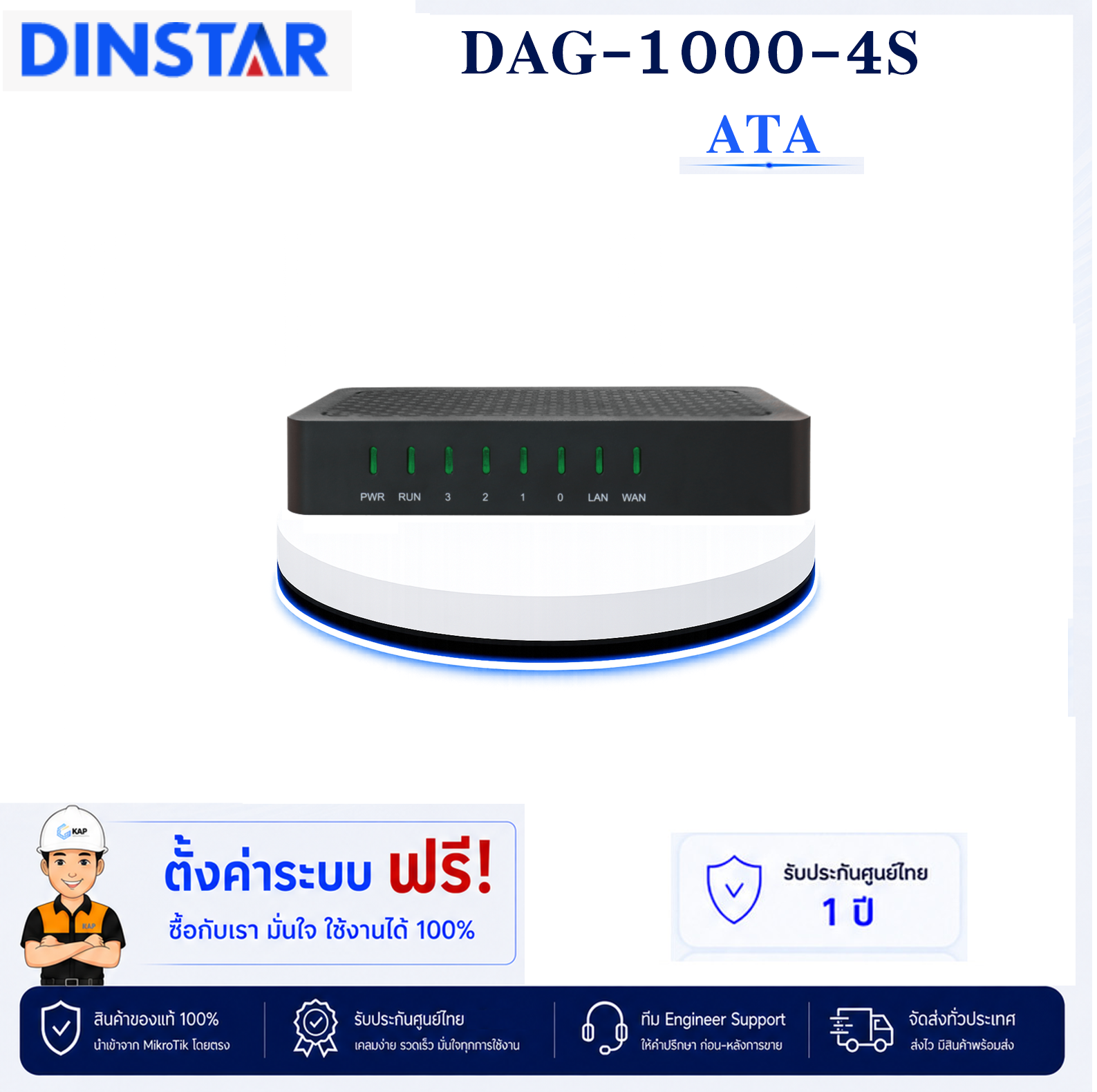

DAG1000-4S

>>>รับประกันการใช้งาน 1ปี<<<

ข้อมูลอุปกรณ์

• Datasheet

Introduction：

DAG1000-4FXS analog gateway are versatile IP-based voice and fax gateway. For small business, the family office, remote office and branch business provide a low cost, simple operation VoIP solutions. Connected analog phone, fax, PBX with standard voice interface and provide quality voice service.

Features

• Support SIP/MGCP
• Primary/Backup SIP Servers
• Flexible Routing and Manipulation
• Support Modem/POS
• Elastix/Broadsoft Certification
• Support IPv4 and IPv6
• Data/ Voice/ Management VLAN
• Build-in Firewall and Access Rules
• SNMP/TR069/Provision
• Cloud-based Management System and Bandwidth Optimization
•

Physical Interfaces

• Phone Interface:4FXS, 8FXS, RJ-11

• Ethernet Interface: 4* RJ-45 10/100Mbps, RJ-45

Voice & Fax

• G.711A/U law, G.723.1, G.729A/B,G.726,iLBC,AMR

• Comfort Noise Generation(CNG)

• Voice Activity Detection(VAD)

• Echo Cancellation(G.168)

• Adaptive (Dynamic) Jitter Buffer

• Hook Flash

• Programmable Gain Control

• T.38/Pass-through, up to 14.4kbps

• Modem/POS

• DTMF mode: Signal/RFC2833/INBAND

FXS Port

• Connector: RJ11

•Dial Mode: DTMF and Pulse

• Pulse: 10 and 20 PPS

• Caller ID: DTMF/FSK

• Max Cable Length: 5KM

• Reversed Polarity

Protocol

• TLS / SRTP
• SIP V2.0 (RFC 3261,3262,3264)

• IMS/3GPP

• SDP (RFC 2327)

• REFER (RFC 3515)

• RTP/RTCP (RFC 1889,1890)

• STUN (RFC 3489)

• ARP/RARP (RFC 826/903)

• SNTP (RFC 2030)

• DHCP/PPPoE

• TFTP/HTTP/HTTPS

• DNS/DNS SRV (RFC 1706/RFC 2782)

• VLAN 802.1P/802.1Q

Supplement Service

• Call Waiting

• Blind  Transfer

• Attend Transfer

• Call Pickup

• Call Forward on Busy

• Call Forward on No Reply

• Unconditional Call Forward

• Hotline

• Call Hold

• DND

• 3-way conference

• Voicemail

Call & Route

• Port Group

• IP Trunk

• Primary and Secondary SIP Account

• 32 Inbound/Outbound Routing

• Number Manipulation

• Digitmap

Network Features

• NAT (Rout and Bridge)

• Static IP, PPPoE, DHCP Client

• DHCP Server

• MAC Address Clone

• DMZ, Static routing

• Built-in Firewall

• Static/dynamic ARP

• QoS, Traffic Shaping

• Voice/Data/Management Vlan

Maintain & Upgrade

• SNMP/TR069

• Auto Provisioning

• Web/Telnet

• Configuration Backup/Restore

• Firmware Upgrade via WEB/TFTP

• Syslog and CDR

• Access Rule List

• Network Capture

• Outward Test(GR909)

• Automatic Time Synchronization

• IVR local Maintenance

• Cloud-based Management

Environment

• Power Supply:100-240V,50-60Hz Output: 12VDC,2APower Consumption:  18W Temperature(Operation): -10 ℃  ~ 45℃ (Storage):   -20 ℃ ~80 ℃

• Humidity: 10%-90%  No condensation

Dimension & Weight

• 240(L)×154(W)×37(H)mm 1kg

Homologation

• CE,FCC

• Elastix  / Broadsoft
