Overview

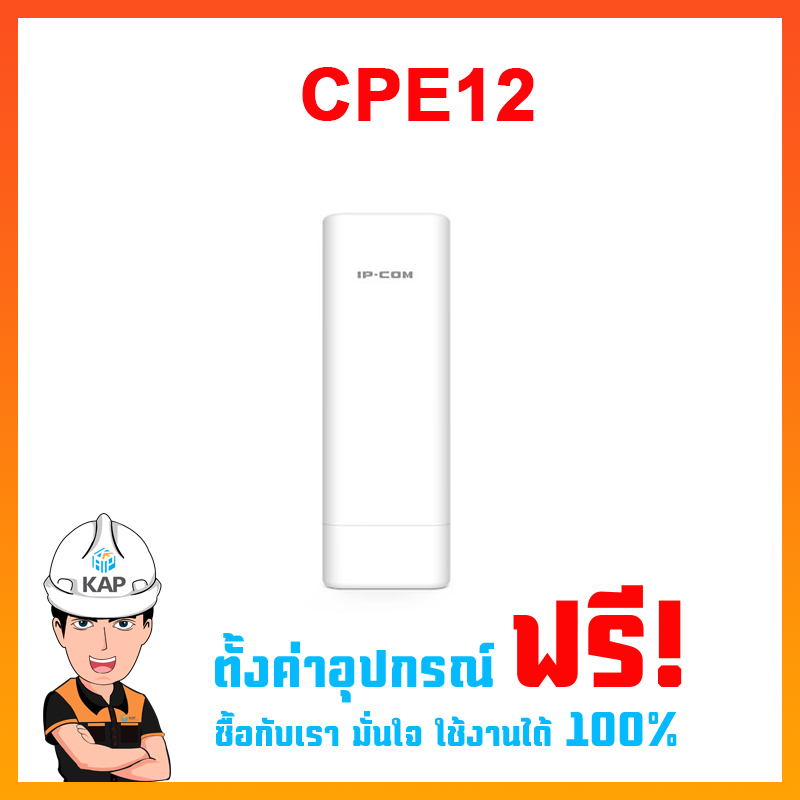

IP-COM CPE12 Wireless CPE Outdoor Point to Point 5GHz ความเร็วสูงสุด 300Mbps, เสาอากาศแบบทิศทาง 14dBi สำหรับเชื่อมต่อเครือข่ายระยะไกล Point To Point ได้ระยะทาง 3-5Km พร้อม Passive POE เดินสาย Lan ได้ระยะถึง 60 เมตร

Model

CPE12

Dimensions

270*94.86*67.5mm

Deployment

Pole Mount/Wall Mount

Application Scenarios

WISP CPE, Data transmission and Long range video surveillance

Frequency Range

5GHz

Compliant Standards

IEEE 802.11a/n

Private TDMA Protocol

IMAX

Maximum Wireless Rate

300Mbps

Interfaces

1*10/100Mbps Ethernet Port

Antennas Gain

14dbi

Antenna Beamwidth

Horizonal: 30°
Vertical: 30°
Elevation: 30°

Reset Button

1

GND

1

Power Consumption

8.5W

Waterproof Level

IP65

LED indicator

PoE/LAN,LED1,LED2,LED3

Power Method

24V0.5A Passive PoE

Lightning Protection

6000V

Passive PoE

Passive power over ethenet via PoE/LAN (+4,5pins; -7,8pins)
Voltage range: 21-25V DC

Receiver sensitivity

MCS0: -96dbm
MCS7: -72dbm

Operating mode

AP/Station/WISP/P2MP/WDS Repeater/Router

Enable/Disable Wireless Radio

Support

SSID Hidden

Support

Wireless Client isolation

Support

SSID Isolation

Support

Channel Bandwidth

10/20/30/40MHz

Client Limitation For SSID

Support

Wireless Access Control

Support

Weak Signal Client Limitation

Support

Transmission Power

Adjustable power by 1dBm

WMM Capable

Support

APSD Capable

Support

Wireless Security

64/128 WEP,WPA-PSK,WPA2-PSK,WPA&WPA2-PSK,WPA,WPA2

Transparent Bridge

Support

VLAN Tagging for SSID

Support

DHCP Server

Support

VPN Pass-Through

PPTP,L2TP

Remote Web access

Support

Schedule Reboot

Support

Page Timeout

Support

Ping Watchdog

Support

Dyndns

noip, dyndns.org

Network Diagnoses

Ping, Traceroute, Signal Scan

Time&Date Setting

Support

Firmware upgrade

Support

Backup/Restore Configuration

Support

Username Managerment

Support

System Log

Support

Managed By Controller

PC Software -- CPE Controller

Package Contents

1*5km Point to Point Outdoor CPE CPE12
1*PoE Power Adapter
1*Quick Installation Guide

Operating Temperature

-30℃ ~ 60℃

Storage Temperature

-40℃ ~ 70℃

Operating Humidity

10%~90% non-condensing

Storage Humidity

10%~90% non-condensing

Default login IP

192.168.2.1

Default Login Username

admin

Default Login Password

admin

Certifications

FCC/CE/RoHS
