cAP ax
>>> รับประกันตลอดการใช้งาน <<<
cAP ax รุ่นนี้สามารถรองรับ WiFi 6 และรองรับ Users Online ได้มากถึง 100+ Clients และ เหมาะสำหรับเป็น Access Point ตามทางเดินในโรงแรม หรือ Labby ฮาร์ดแวร์ รองรับการทำงาน CPU 4 Core และ RAM 1GB มี Interface LAN Gigabit จำนวน 2 Ports ; สามารถรองรับการทำงาน WiFi Wave2 ย่าน 2.4Ghz (802.11b/g/n/ax) และ ย่าน 5Ghz (802.11a/n/ac/ax) Bandwidth Speed รวมสูงสุด 1800 Mbps ; ที่สำคัญรุ่นนี้ รองรับการทำงาน PoE Out ที่สามารถจ่ายไฟ Passive PoE up to 57V
Details
Product code
cAPGi-5HaxD2HaxD
Architecture
ARM 64bit
CPU
IPQ-6010
CPU core count
4
CPU nominal frequency
auto (864 – 1800) MHz
Switch chip model
RouterOS license
Operating System
RouterOS (v7 only)
Size of RAM
1 GB
Storage size
128 MB
Storage type
NAND
MTBF
Approximately 200’000 hours at 25C
Tested ambient temperature
-40°C to 70°C
IPsec hardware acceleration
Yes
Wireless 2.4 GHz Max data rate
574 Mbit/s
Wireless 2.4 GHz number of chains
2
Wireless 2.4 GHz standards
802.11b/g/n/ax
Antenna gain dBi for 2.4 GHz
6
Wireless 2.4 GHz chip model
QCN-5022
Wireless 2.4 GHz generation
Wi-Fi 6
Wireless 5 GHz Max data rate
1200 Mbit/s
Wireless 5 GHz number of chains
Wireless 5 GHz standards
802.11a/n/ac/ax
Antenna gain dBi for 5 GHz
5.5
Wireless 5 GHz chip model
QCN-5052
Wireless 5 GHz generation
WiFi speed
AX1800

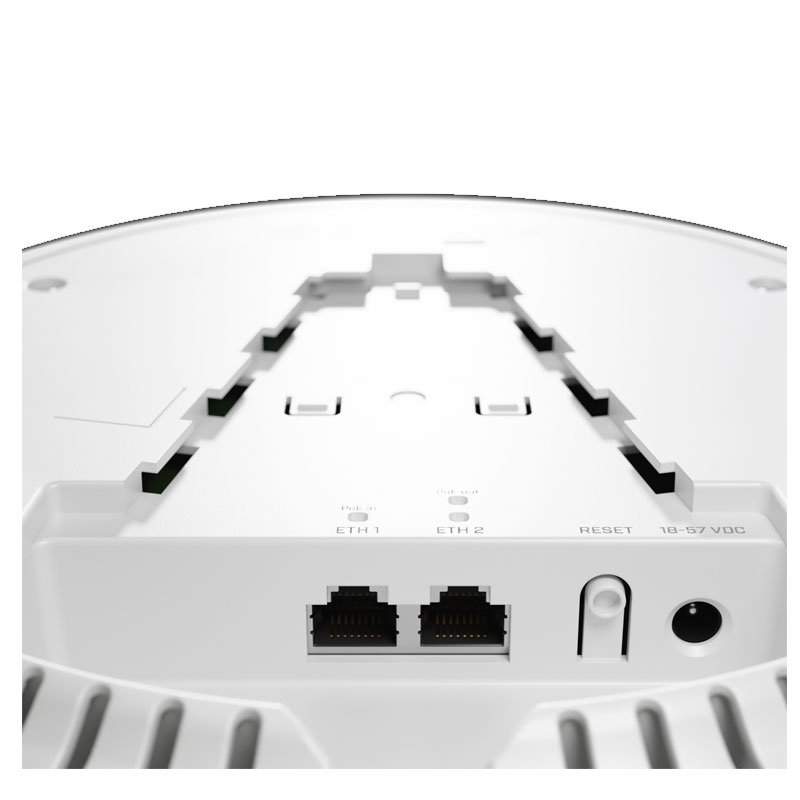

10/100/1000 Ethernet ports
Number of 1G Ethernet ports with PoE-out
1
Number of DC inputs
2 (DC jack, PoE-IN)
DC jack input Voltage
18-57 V
Max power consumption
28.2 W
Max power consumption without attachments
9 W
Cooling type
Passive
PoE in
802.3af/at
PoE in input Voltage
PoE-out ports
Ether2
PoE out
Passive PoE up to 57V
Max out per port output (input 18-30 V)
600 mA
Max out per port output (input 30-57 V)
400 mA
Max total out (A)
Total output current
0.4
Total output power
19.2
Certification
ACE, FCC, IC, EAC, ROHS
IP
20
