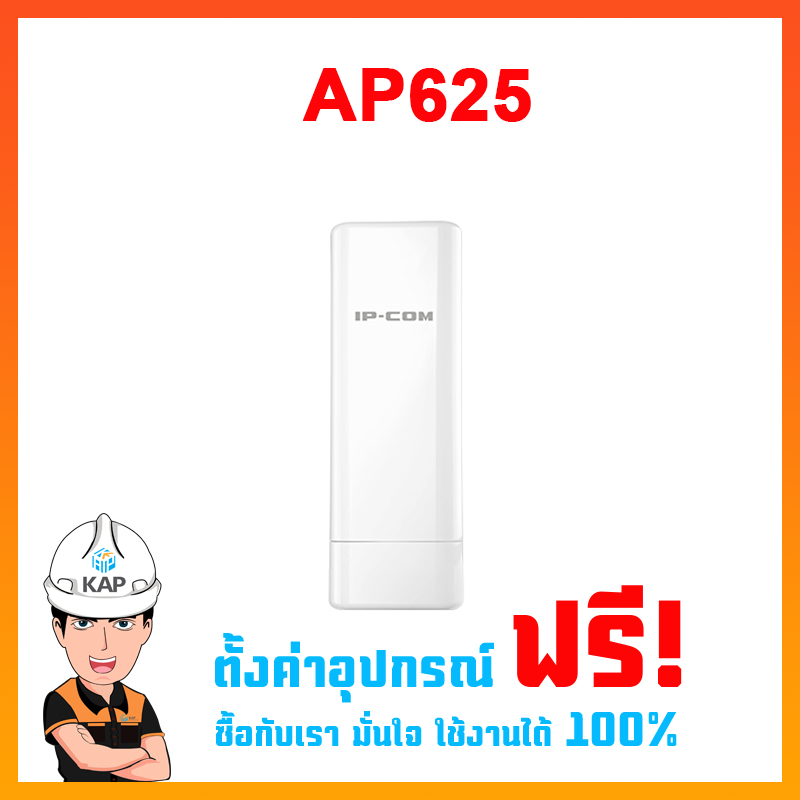

AP265
5GHz 433Mbps Outdoor Point to Point CPE
Overview
IP-COM AP625 Wireless CPE Outdoor Point to Point AC ความเร็วสูงสุด 433Mbps, เสาอากาศแบบทิศทาง 16dBi สำหรับเชื่อมต่อเครือข่ายระยะไกล Point To Point ได้ระยะทาง 5-10Km พร้อม Passive POE เดินสาย Lan ได้ระยะถึง 60 เมตร
Hardware Features
Dimensions
270*94.86*67.5mm
Frequency Range
5GHz
Maximum wireless speed
433Mbps
CPU Processor
Broadcom 900MHz
GND Terminal
1
Interface
1*GE PoE/WAN/LAN port
Mode Switch
STA: The device only work in Station mode Off: The device work on AP/Station/Universal Repeater/WISP/Router mode AP: The device only work in AP mode
Button
Reset: Press 15 seconds or more to restore to default settings Bridge: Press 3-7 seconds and release it to bridge uplink AP
Antennas
16dbi Directional Antenna
Antenna Beamwidth
Horizontal: 30° Vertical: 15°
Maximum Power Consumption
9W
Lightning Protection
6KV
Waterproof Level
IP64
LED indicator
LAN,LED1,LED2,LED3
Power Supply
24v 0.5A PoE Injector
Software Features
Operating mode
AP/Station/Universal Repeater/WISP/Router
Compliant Standards
IEEE 802.11ac/n/a
Wireless Features
Enable/Disable Wireless Radio SSID Hidden Wireless Client isolation Sensitivity Threshold WMM Capable APSD Capable Wireless Access Control Wireless Client list
Wireless Security
64/128 WEP,WPA-PSK,WPA2-PSK,WPA&WPA2-PSK,WPA,WPA2
Transmission Power
Adjustable power by 1dBm
Receiver sensitivity
MCS0: -90dbm MCS7: -72dbm
DHCP Server
DHCP Server Clients list
VPN Pass-Through
PPTP,L2TP
Remote Web access
Support
Schedule Reboot
Page Timeout
Ping Watchdog
Speed Test
Dyndns
noip, dyndns.org
Network Diagnoses
Ping, Traceroute, Signal Scan
Management Tool
Time&Date Setting System Log Firmware update Backup/Restore Configuration Username Managerment
Managed By Controller
PC Software -- CPE Controller
Others
Package Contents
5G 433Mbps outdoor Point to Point CPE AP625 Power Adapter Ethernet cable Two Plastic Staps Quick Installation Guide
Operating Temperature
-20℃ ~ 55℃
Storage Temperature
-40℃ ~ 70℃
Operating Humidity
10%~90% non-condensing
Storage Humidity
Default login IP
192.168.2.1
Default Login Username
admin
Default Login Password
Certifications
FCC/CE/RoHS
