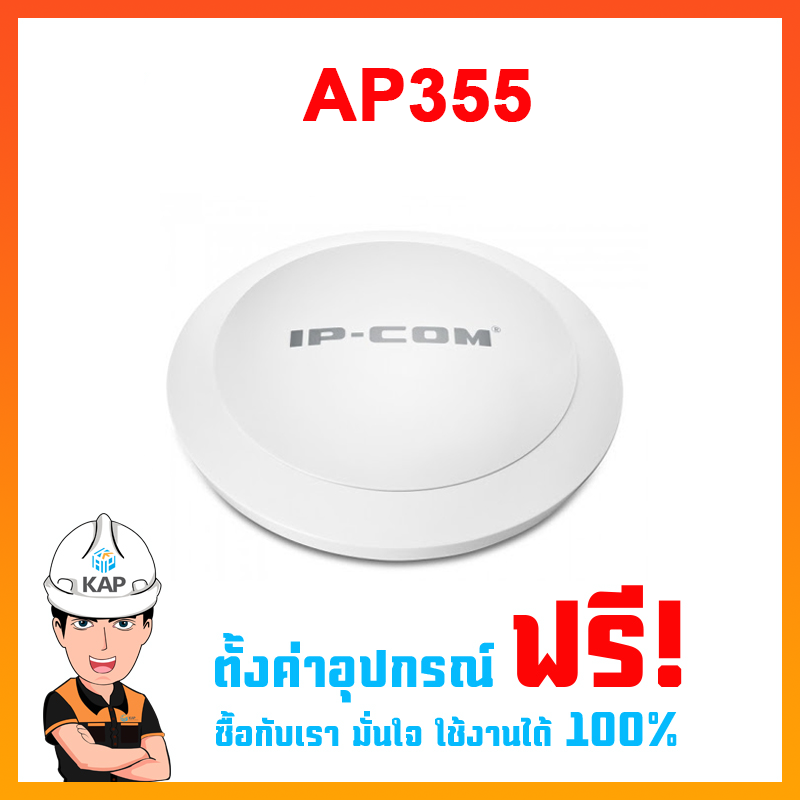

AP355
Overview
IP-COM AP355 Wireless Access Point Dual-Band 2 ย่านความถี่ 2.4/5GHz มาตรฐาน AC ความเร็วสูงสุด 1,200Mbps Port Lan ความเร็ว Gigabit รองรับการทำ Access Controller รองรับ POE มาตรฐาน 802.3at
Product Information
Model
Mounting
Ceiling and Wall Mount
Dimensions
200*200*30mm(W x H x L)
Application Scenarios
Medium-Sized Enterprise offices, Shopping Malls, and Restaurants etc
Hardware Specifications
Frequency Bands
2.4GHz/5GHz
PHY Data Rates
1200Mbps
Wi-Fi Standards
IEEE 802.11n/g/b, 802.11ac/n/a
Interfaces
1*10/100/1000Mbps PoE/LAN port, 1*DC Power Jacket
Buttons
1*RESET
Antennas
2x Integrated dualband, Omni-directional, 4dBi gain
Max Power Consumption
17W
LED Indicators
PWR, 2.4G,5G
Power Supply
DC Input: 12 VDC 1.5A PoE: 802.3at compliant
Receiver Sensitivity
MCS0: -88dBm MCS7: -72dBm
Software Specifications
Operating mode
AP,WDS,Client+AP
WiFi Radio
Enable or Disable
BSSIDs
Up to 8 (2.4 GHz), Up to 4(5 GHz)
SSID hiding
User Isolation
Support
Clients Limit
Connected user number limitation for every SSID
VLANs
802.1Q, 4094 VLAN IDs (1 to 4094) and SSID-based VLAN assignment
RSSI Threshold
Fast Roaming
Power Save (APSD)
Multicast to unicast Conversion
WMM Capable
Traffic Shaping
Airtime Fairness
Band Steering
Spectrum Analysis
Automatic Channel control
Adjustable Power
Adjustable step by 1dBm
Access Control
Connect limitation based on mac address
Wireless Security
64/128 WEP,WPA-PSK,WPA2-PSK,WPA&WPA2-PSK,WPA,WPA2
DHCP Server
VPN Pass-Through
PPTP,L2TP
Network Diagnoses
Ping
Time&Date Setting
WiFi Client Association Status
System Monitoring
Status Statistic and Event Log
Backup Configuration
Restore Configuration
Reset Device
Support from Web UI or AP Controller
Username Management
Firmware Upgrade
Centralized Management
Managed by AC2000, AC3000
Working Environment
Operating Temperature
-10~40
Storage Temperature
-30~70
Operating Humidity
10%-90% (non-condensing)
Storage Humidity
Default Login IP
192.168.0.254
Default User Name
admin
Default Password
Certifications
FCC/CE/RoHS
