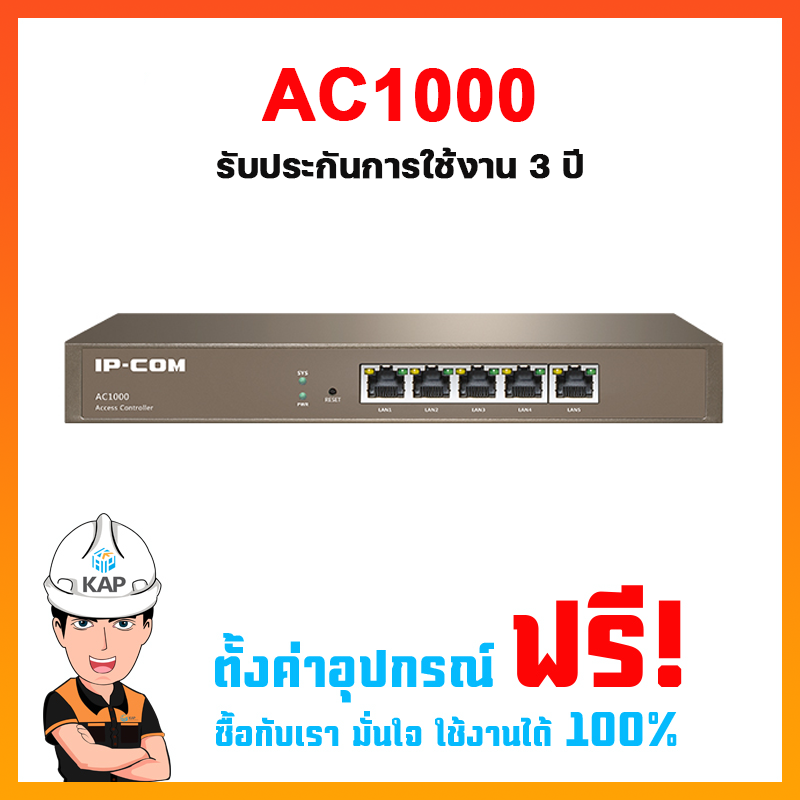

AC1000
Model
Deployment
Ceiling and Wall Mount
Dimensions
210mm*130mm*30mm(L*W*H)
Application Scenarios
budget hotels,K-12 schools etc SMB
Hardware Specifications
Standards
IEEE 802.3u/ab
Interfaces
5*10/100/1000Mbps LAN
LEDs
SYS?POWER?RESET
CPU
800MHz Broadcom ARM
RAM
128MB
Flash
16MB
Max Power Consumption
9W
Software Specification
Default AP managed number
64
Max AP managed number
128
Wireless Features Management
Access Point Auto Discovery Access Point Auto IP Assignment Access Point Device Name Editing Access Point SSID Editing Access Point Client Limit Editing Access Point output power Editting Access Point Security Editting(None,WPA-PSK,WPA2-PSK) Access Point isolation Editting Access Point SSID isolation Editting Access Point channel Select VLANs for Access Point-Multiple SSIDs 5G Band Steering editting Client isolation editting SSID isolation editting RSSI threshold for client access editting Monitor the AP online status Wireless Client Monitoring Batch AP Reset capability Batch AP reboot capability batch Firmware Upgrade Capability Schedule reboot AP capability AP failure alarm AP traffic alarm AP clients limit alarm AP&am;clients list export
System Tools
IP Setting System Time&Date Firmware upgrade Configurating backup and restore Device Reboot Username and password System log
Operating Environment
Operating Temperature
-10-45
Storage Temperature
-30-70
Operating Humidity
10%-90%(non-condensing)
Storage Humidity
5%-90%RH(non-condensing)
Default Login IP
192.168.10.1
Default username
admin
Default Password
Certification
CCC/FCC/CE/ROHS
