Model

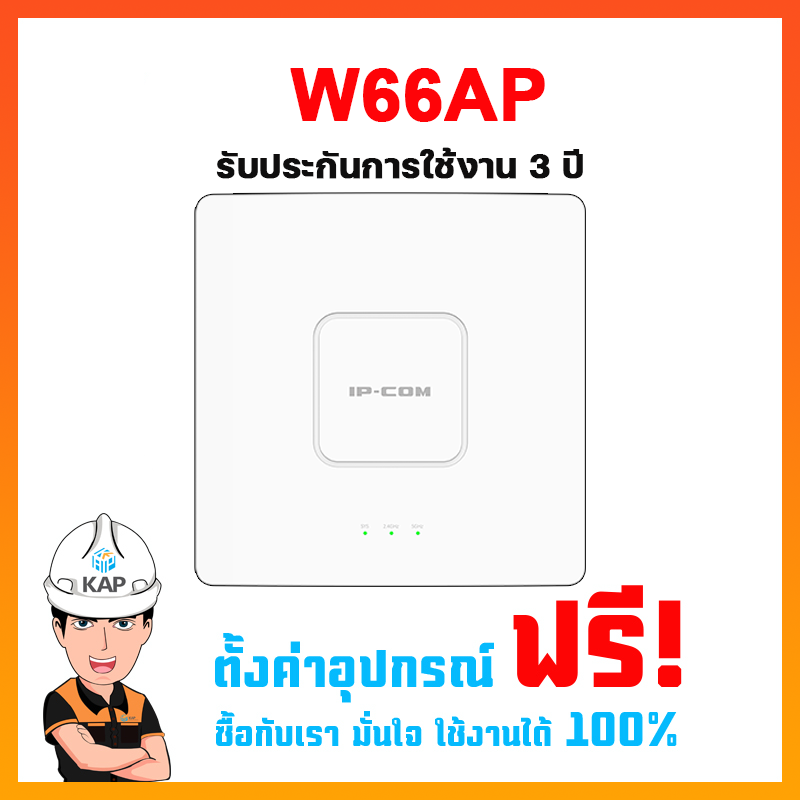

W66AP

Appearance

Ceiling

Dimensions

178 mm * 178 mm * 38 mm

Frequency band

2.400 – 2.4835 GHz, 5.150 – 5.250 GHz

Wireless standards

IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac

2.4 GHz data rate

1 - 450 Mbps

5 GHz data rate

6 - 1299 Mbps

Ethernet port

1*10/100/1000 Base-TX RJ45 port

Button

1*Reset

LED indicator

1*SYS,1*2.4 GHz,1*5 GHz

Max. power consumption

Full-load 13.5W

Power supply standard

IEEE 802.3at PoE, DC 12V 1.5A

Operating modes

AP, Client+AP

Hide SSID

Supported

Max. No. of SSID

"2.4 GHz: 8 5 GHz: 4"

Max. connected clients

"2.4 GHz: >200 5 GHz: >200"

WEP

Supported

WPA-PSK

AES/TKIP

WPA2-PSK

AES/TKIP

WPA

Supported

WPA2

Supported

Access control

MAC address-based

Adjustable power transmit

Supported

Frequency analysis

Supported

AP isolation

Supported

Connected clients control

Supported

RSSI threshold

Supported

WMM

Supported

VLAN tagging for SSID

Supported

Antenna gain

6*4 dBi

2.4 GHz Max. output power

23 +/- 1.5 dBm

5 GHz Max. output power

23 +/- 1.5 dBm

802.11b RX sensitivity

-93 dBm

2.4 GHz 802.11n (MCS7) RX sensitivity

-74 dBm

5 GHz 802.11a RX sensitivity

-97 dBm

5 GHz 802.11n (MCS7) RX sensitivity

-78 dBm

Prefer 5 GHz

Supported

LED indicator control

Supported

Diagnostics tool

Ping, Traceroute

Scheduled reboot

Supported

Reboot at specified interval

Supported

Management

Web UI

System logs

Supported

Firmware upgrade

Local and AC upgrade

Reboot

Local and AC reboot

Reset

Local and AC reset

Backup configuration

Supported

Restore configuration

Supported

Default login IP address

192.168.0.254

Default user name

admin

Default password

admin

Operating temperature

-10 ℃ - 45 ℃

Operating humidity

(10% - 90%) RH, non-condensing

Storage temperature

-30 ℃ - 70 ℃

Storage humidity

(10% - 90%) RH, non-condensing

Certificates

CE\FCC\RoHS
